Mercedes A0009970534 - Болт

3331 A - 3348 A 930.182

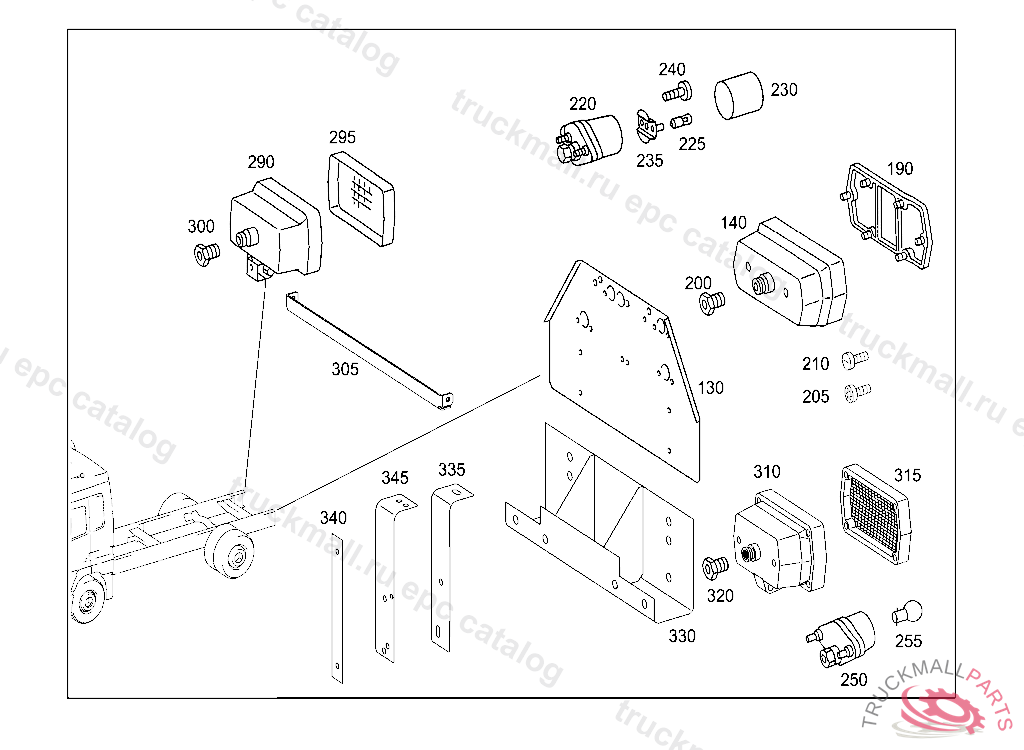

52 SHEET METAL,AIR INTAKE - 001 MASKED LIGHT CIRCUIT IL.2

Поз.
Артикул
Описание
130
A4375440517
PLATE TAILLAMPS
140
A0005448303
TAIL LAMP (MASKED TAIL LAMP)
190
A0015445890
LENS MASKED TAIL LAMP
200
A0009970534
SCREW
205
N000000001933
SCREW FUSE BOX TO SIDE MEMBER,5 097182
210
N000084003101
SCREW BRACKET TO COVERING, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
220
A0005448403
MASKED STOP LAMP
225
N072601024801
BULB TELL-TALE LAMP
230
A0015445790
LENS
235
A0005444693
LAMP SOCKET
240
N000084004194
SCREW
250
A0005442434
LICENSE PLATE LAMP
255
N072601024701
BULB TAIL LAMP 5 W
290
A0005442707
BACK-UP LAMP
295
A0015449790
LENS
300
A0009970534
SCREW
305
A6623125940
BRACKET REAR CENTRAL, I NO.8152IIII
310
A0005441004
TAIL LAMP (REAR FOGLAMP)
315
A0015448990
LENS
320
A0009970534
SCREW
330
A6628220314
BRACKET REAR FOGLAMP
335
A6628260714
BRACKET MOUNTING PARTS
340
A6628220414
BRACKET MOUNTING PARTS
345
A6628260814
BRACKET MOUNTING PARTS
999
A6628100823
CURTAIN INDICATOR INSTRUMENT
999
A6628100020
ROLLER BLIND INSTRUMENTS 500X250MM
999
A6625400196
MASKED LAMP REAR
999
A6625400096
MASKED LAMP FRONT
