Поз.
Артикул
Описание

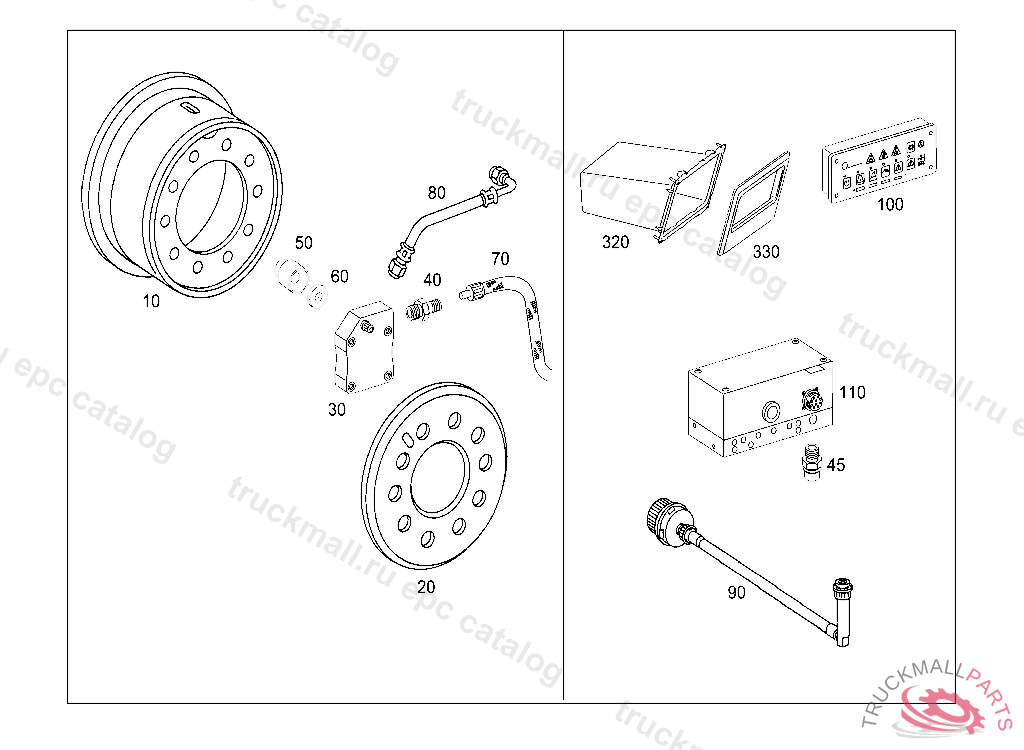

10
DISC WHEEL (10-HOLE RIM) 10.00X20
20
HUB CAP FRONT WHEELS
30
VALVE (PRESSURE CONTROL VALVE)
40
VALVE 3/2-WAY VALVE,CONNECTION: "2"
40
VALVE 3/2-WAY VALVE,CONNECTION: "1"
40
VALVE 3/2-WAY VALVE,CONNECTION: "1"
45
SCREW FITTING LINE CONNECTIONS 18-16.7MM
45
FITTING TO CONTROL UNIT M22X1.5
50
LOCK NUT AT VALVE
60
SEAL RING AT FASTENER
70
AIR TUBE INFLATION PRESSURE CONTROL SYSTEM
70
LINE AT VALVE
80
VALVE TUBE INFLATION PRESSURE CONTROL SYSTEM
90
LINE BLEEDING VALVES
100
CONTROL UNIT INFLATION PRESSURE CONTROL SYSTEM
110
CONTROL UNIT INFLATION PRESSURE CONTROL SYSTEM
110
CONTROL UNIT INFLATION PRESSURE CONTROL SYSTEM
110
CONTROL UNIT INFLATION PRESSURE CONTROL SYSTEM
320
PIGEONHOLE STOWAGE BOX CENTER, Replaced By: A9438460169
320
PIGEONHOLE STOWAGE BOX CENTER, TO BE ADAPTED DURING ASSEMBLY NO.7D66I I I I I I
330
ORNAMENTAL COVER STOWAGE BOX CENTER, Replaced By: A9436950257
330
ORNAMENTAL COVER STOWAGE BOX CENTER, TO BE ADAPTED DURING ASSEMBLY NO.7D66I I I I I I
999
ADDITIONAL INSTRUCTIONS
999
SCREW ON COUPLING PARTS KIT SYEGON 8X8
999
PLUG
