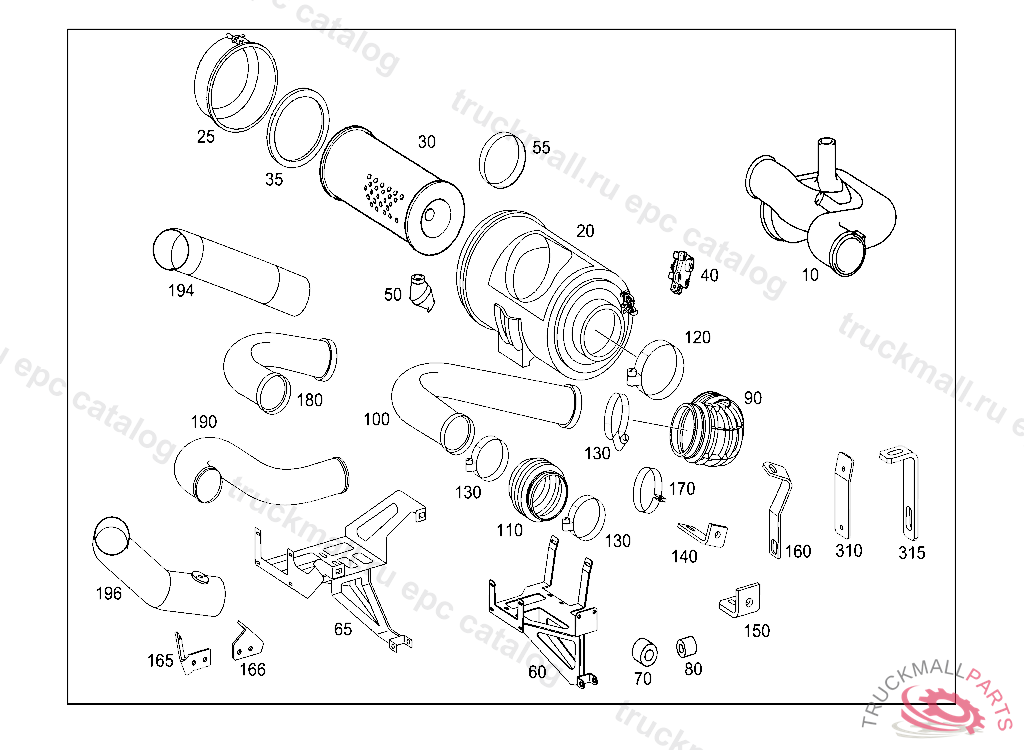

Поз.
Артикул
Описание
10
INTAKE MANIFOLD (AIR INTAKE PIPE)
10
INTAKE MANIFOLD , Replaced By: A5421410101
20
AIR CLEANER
20
AIR CLEANER
25
FILTER BOWL LOWER PART,K 056772
30
FILTER ELEMENTTO 017 094 17 02, 017 094 39 02
35
GASKET AIR CLEANER
40
PRESSURE SENSOR
40
SENDER UNIT MAINTENANCE INDICATION
50
VALVE CYCLONE
55
AIR FILTER AIR CLEANER
60
BRACKET AIR CLEANER
60
PLATE AIR CLEANER
65
SUPPORT AIR CLEANER
70
BUSHING , Replaced By: A4403220150
70
BUSHING , Replaced By: A4403220150
70
SPACER TUBE , Replaced By: A4403220150
70
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
70
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
80
BUSHING TORSION BAR TO REAR AXLE
80
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
80
BUSHING MOUNTING PARTS, Replaced By: A4182420050
80
BUSHING MOUNTING PARTS, Replaced By: A6753220250
80
SPACER TUBE MOUNTING PARTS, Replaced By: A6623170650
80
SPACER TUBE MOUNTING PARTS, Replaced By: A6173280153
80
SPACER TUBE CONTROL ARM TO BEARING BODY,5 0106815 048243
80
BUSHING MOUNTING PARTS 40/19/75
90
HOSE (BELLOWS),AIR INTAKE
100
PIPE ELBOW FROM AIR CLEANER TO ENGINE
110
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
120
CLAMP AIR INTAKE
130
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
140
BRACKET MOUNTING FOR INTAKE PIPE
150
BRACKET MOUNTING FOR INTAKE PIPE
160
BRACKET MOUNTING FOR INTAKE PIPE
165
BRACKET MOUNTING FOR INTAKE PIPE
166
BRACKET MOUNTING FOR INTAKE PIPE
170
CLAMP EXHAUST PIPE TO MUFFLER
170
CLAMP STRUT TO EXHAUST PIPE
170
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
180
PIPE FROM AIR CLEANER TO TURBOCHARGER
180
PIPE FROM AIR CLEANER TO TURBOCHARGER
190
PIPE FROM AIR CLEANER TO TURBOCHARGER
194
AIR INTAKE PIPE FROM AIR CLEANER TO TURBOCHARGER
196
INTAKE MANIFOLD FROM AIR CLEANER TO TURBOCHARGER
196
INTAKE MANIFOLD FROM AIR CLEANER TO TURBOCHARGER
196
INTAKE MANIFOLD FROM AIR CLEANER TO TURBOCHARGER
196
INTAKE MANIFOLD FROM AIR CLEANER TO TURBOCHARGER
310
BRACKET MOUNTING PARTS
315
BRACKET MOUNTING PARTS
