Mercedes
›
TRUCK
›
2531 L - 2543 L
›
950.218
›

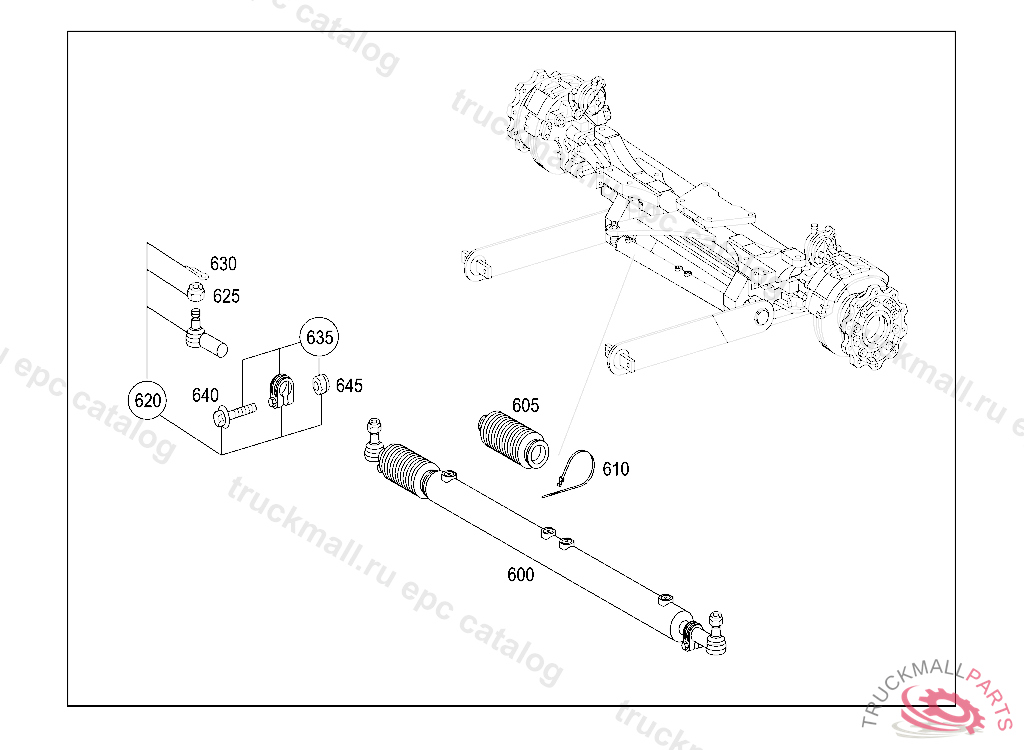

39 TRAILING AXLE
›
001 STEERED TRAILING AXLE, MAKE PAUL IL.9
Mercedes N000000001571 - БОЛТ М10
2531 L - 2543 L 950.218
39 TRAILING AXLE - 001 STEERED TRAILING AXLE, MAKE PAUL IL.9
Поз.
Артикул
Описание
600
A6294660192
CYLINDER (POWER CYLINDER) TRAILING AXLE
605
A0004632396
BOOT POWER CYLINDER
610
A0059971090
LOOM TIE BOOT 295X3.6MM
620
A0014606948
DRAG LINK END LONG 90MM
620
A0014607048
DRAG LINK END SHORT 80 MM
625
N000935024000
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
630
N000094005045
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
635
A0004660677
CLAMP DRAG LINK END
640
N000000001571
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
645
N304032010003
NUT BATTERY CABLE
999
A6623380005
STEERING ARM STEERING ARMS
999
A6623380006
STEERING ARM LEFT
999
A6623380106
STEERING ARM RIGHT
999
A6623910001
AXLE BEAM TRAILING AXLE
999
A6629971182
HOSE
999
A9424603535
BRACKET FILTER
999
A9424605043
LINE , INCLUDED IN RANGE OF DELIVERY OF: A 000 460 10 00
999
X005503538
FRONT AXLE , Replaced By: X005503537, +002A0154209918
