Поз.
Артикул
Описание

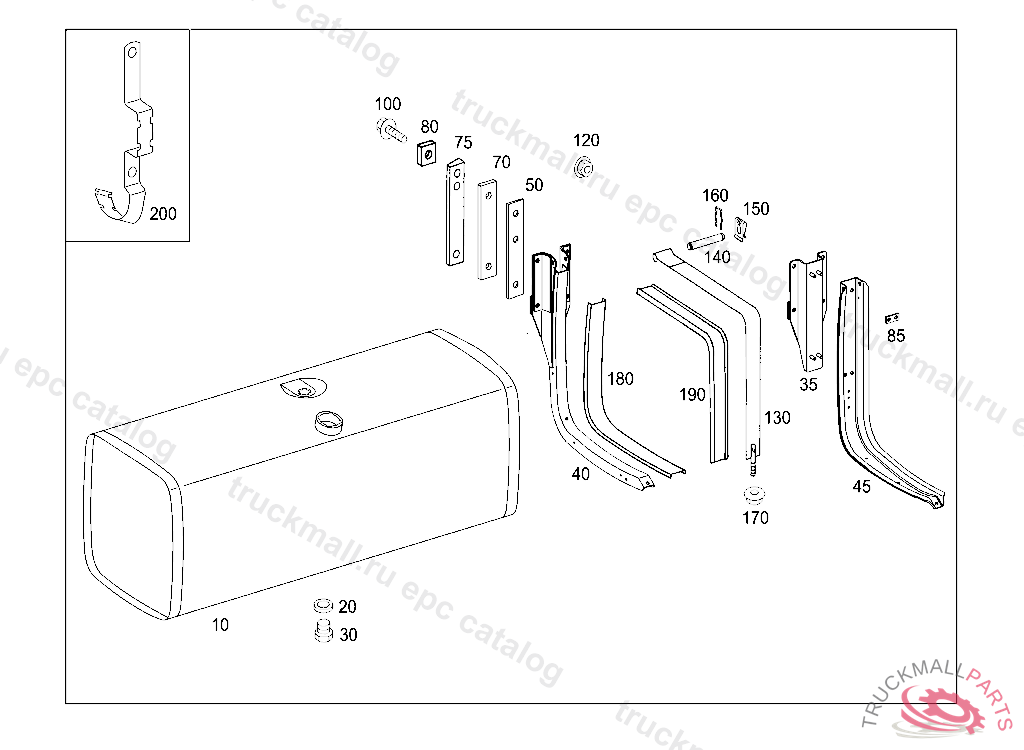

10
FUEL TANK TO BE MOUNTED ON THE LEFT 550L
10
FUEL TANK TO BE MOUNTED ON THE LEFT 550L
20
SEAL RING FUEL LINE TO FEED PUMP
30
SCREW PLUG FUEL TANK
35
BRACKET FUEL TANK TO FRAME
40
SUPPORT FRONT RIGHT TANK
45
CONSOLE FUEL TANK TO FRAME
50
SHIM FUEL TANK TO FRAME 12MM
70
SHIM REINFORCEMENT 173X50X7 MM
70
SHIM MOUNTING PARTS 20MM
70
SHIM. BASE FUEL TANK TO FRAME 40MM
75
SHIM MOUNTING PARTS
80
SHIM MOUNTING PARTS 7MM
85
SHIM FUEL TANK TO FRAME
100
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
100
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
100
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X65
100
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
100
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
100
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M14X1.5X80
120
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
130
STRAP FUEL TANK
130
STRAP FUEL TANK TO CONSOLE
140
PIN STRAP TO SUPPORT
140
CLAMPING SCREW STRAP TO SUPPORT
150
CLIP RESERVOIR TO CAB FRONT PANEL
160
CLIP STRAP TO SUPPORT
170
NUT STRAP TO SUPPORT M 12X1.5
180
PAD BRAKE ANCHOR 81.5MM
180
PAD STRAP 61 MM
190
PAD BRAKE ANCHOR 53 MM
190
PAD BRAKE ANCHOR 44.7MM
200
BRACKET MOUNTING PARTS
