Поз.
Артикул
Описание

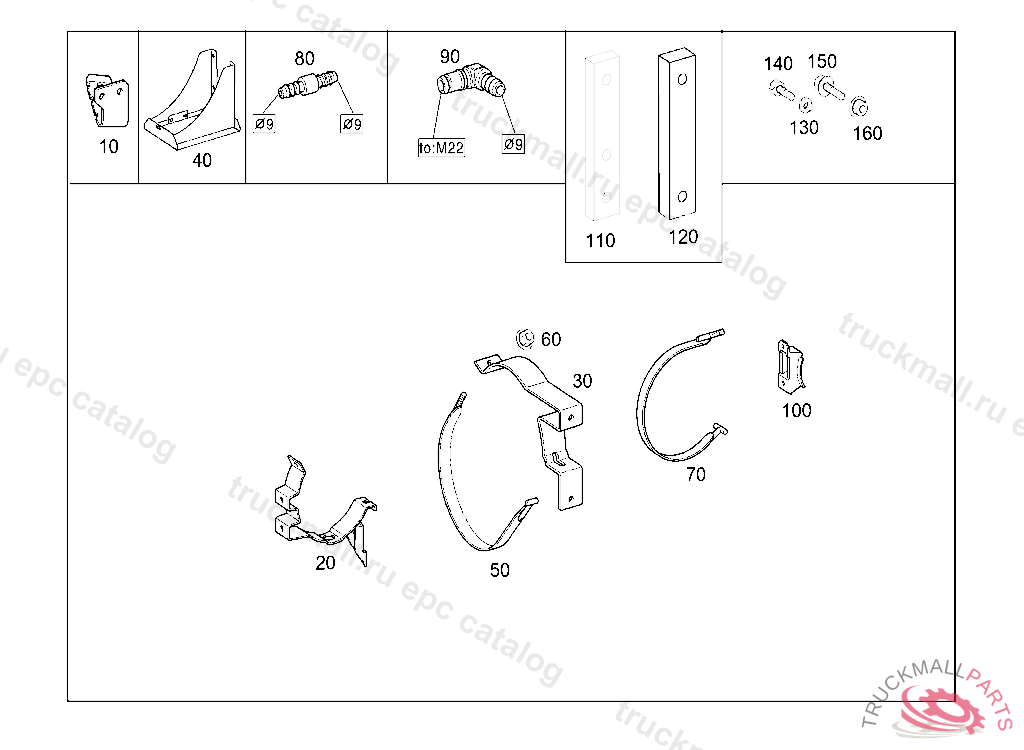

10
BRACKET LINE MOUNTING
20
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT, REAR
30
BRACKET AIR RESERVOIR TO LEFT SIDE MEMBER, INSIDE 20 L, NOT USED
40
BRACKET SPARE WHEEL, ONLY FOR AUSTRALIA CODE 625
40
BRACKET SPARE WHEEL
50
STRAP AIR RESERVOIR TO BRACKET
60
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
70
STRAP AIR RESERVOIR TO BRACKET
80
CONNECTOR REPAIR SIZE
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
100
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
110
SHIM MOUNTING PARTS 30MM
110
SHIM MOUNTING PARTS
120
SHIM MOUNTING PARTS 25MM
120
SHIM FUEL TANK TO FRAME 12MM
130
WASHER SUPPORT TO SPARE WHEEL CARRIER
130
WASHER SUPPORT TO SIDE MEMBER
130
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
130
WASHER TORSION BAR TO BEARING BRACKET
140
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
150
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
150
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
150
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
150
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
150
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
150
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
150
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
150
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
160
NUT BRACKET TO SIDE MEMBER M12X1.5
160
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
160
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
160
NUT RETARDER HOUSING TO TRANSMISSION CASE
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
