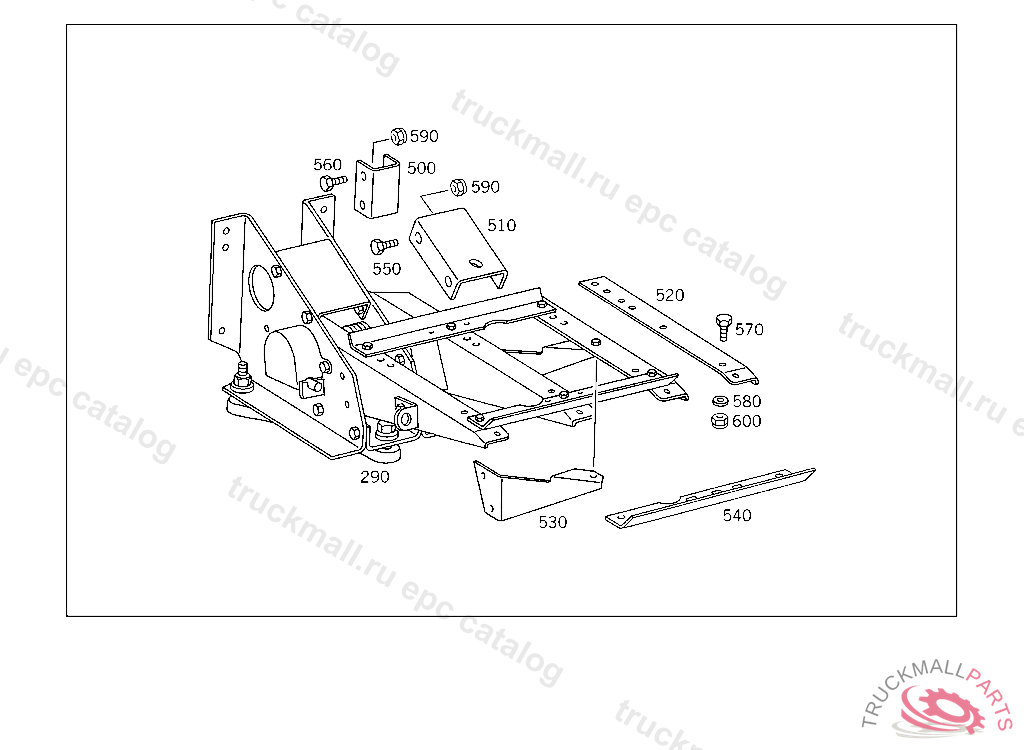

Поз.
Артикул
Описание
290
BRACKET
290
BRACKET , Replaced By: A6524002239
290
BRACKET SPARE WHEEL MOUNTING
500
BRACKET
510
BRACKET
520
BEARING BRACKET
530
WEB , TO BE ADAPTED DURING ASSEMBLY
540
ANGLE
550
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
550
SCREW , Replaced By: N308676012012
560
SCREW CONSOLE TO SIDE MEMBER
570
SCREW CLAMP TO EXHAUST PIPE
580
WASHER RADIATOR TO RUBBER MOUNTING
580
WASHER , Replaced By: N000125010532
590
NUT SUPPORT TO SIDE MEMBER
600
NUT STRAP TO BRACKET
600
NUT , Replaced By: N910113010000
999
BRACKET BRAKE LINE COUPLING
