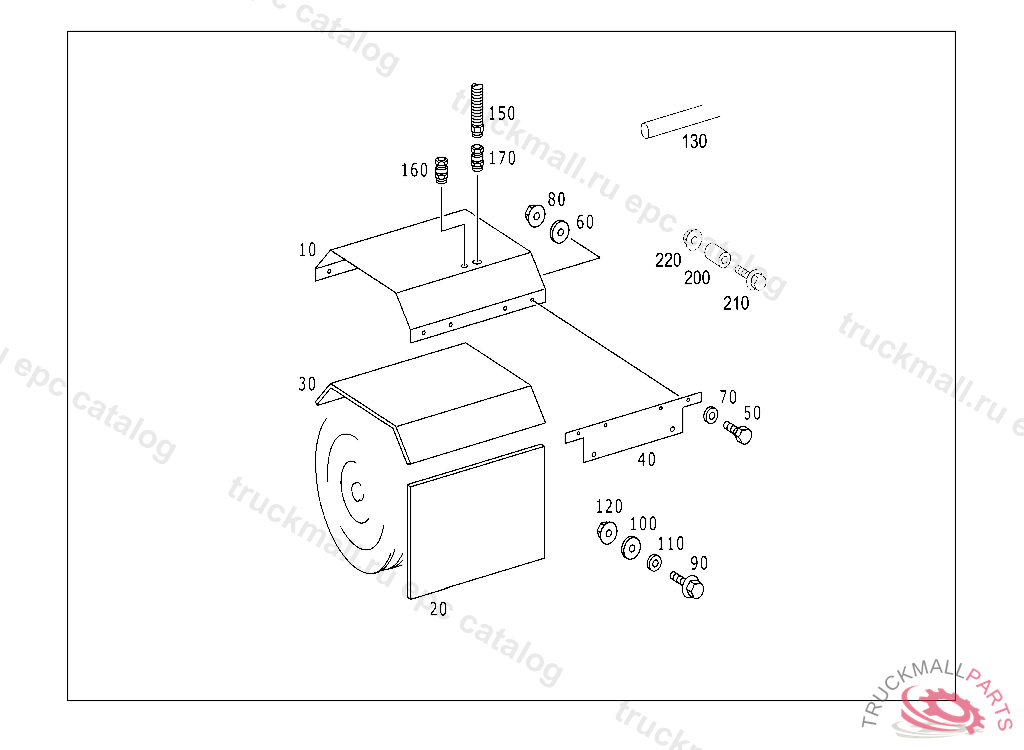

Поз.
Артикул
Описание
10
COVERING AT HEAT SHIELD, SIMPLE PART-PLEASE HAVE SHOP MADE
10
COVERING TOP, SIMPLE PART-PLEASE HAVE SHOP MADE
10
COVERING TOP
20
COVERING (HEAT SHIELD) 520X342MM
30
COVERING AT HEAT SHIELD 520X656MM
40
COVERING AT HEAT SHIELD, SIMPLE PART-PLEASE HAVE SHOP MADE
50
SCREW PUMP TO BRACKET
60
WASHER COMPRESSED AIR LINE TO BRACKET
70
WASHER COMPRESSED AIR LINE TO BRACKET
70
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
90
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
100
WASHER BRACKET TO COVERING
110
WASHER RADIATOR TO RUBBER MOUNTING
120
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
INSULATING HOSE HEAT INSULATION FOR FRAME WIRING HARNESS 50MM, ORDER BY THE METER
130
INSULATING HOSE8 MM, ORDER BY THE METER
150
INSULATING HOSE HEAT INSULATION 15/18 MM, ORDER BY THE METER
150
INSULATING HOSE15MM, ORDER BY THE METER
160
CABLE GUIDE INSULATING HOSE 10-14 MM
170
CABLE GUIDE INSULATING HOSE 12-18 MM
200
SHACKLE PIN MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
210
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
220
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
NUT INSULATING HOSE
