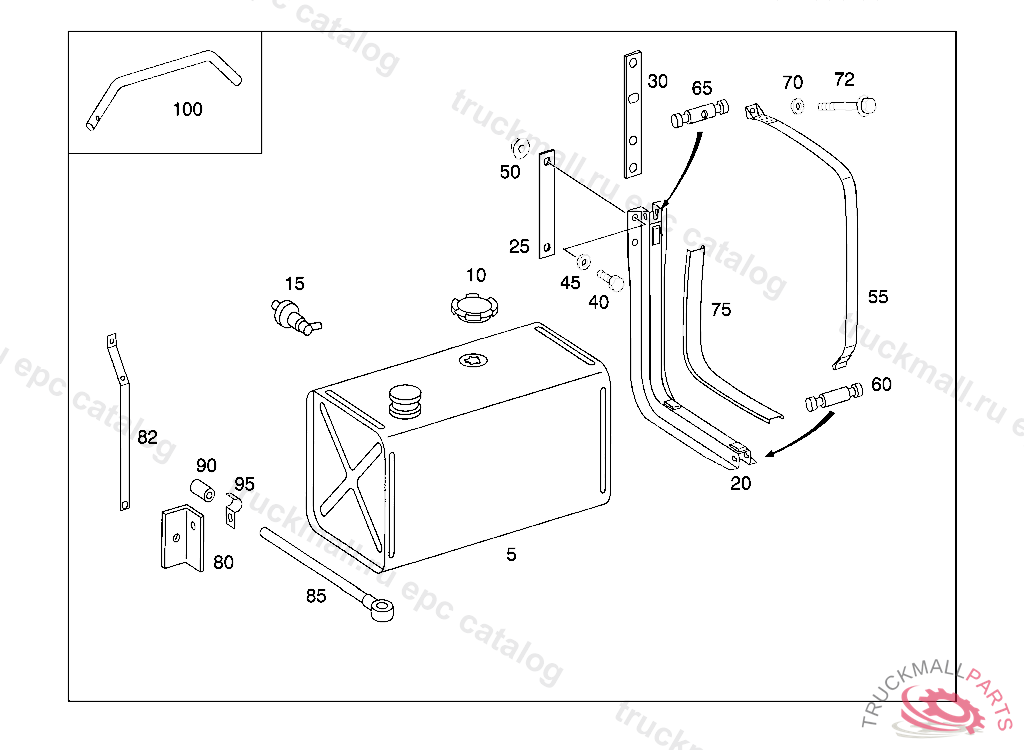

Поз.
Артикул
Описание
5
FUEL TANK390 L
10
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
15
VALVE (VENT VALVE), UP TO 10.96
20
SUPPORT FUEL TANK TO FRAME
25
SHIM MOUNTING PARTS, SIMPLE PART-PLEASE HAVE SHOP MADE
30
SHIM FUEL TANK TO FRAME
40
SCREW SUPPORT TO FRAME M 16X1.5X55
40
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X70
40
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
45
WASHER SUPPORT TO FRAME
50
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
55
STRAP FUEL TANK TO CONSOLE
60
PIN STRAP TO SUPPORT 16X80 MM
65
PIN STRAP TO SUPPORT 25X80 MM
70
WASHER
72
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
75
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
80
BRACKET FUEL LINE
82
BRACKET FUEL COMPENSATING LINE, SIMPLE PART-PLEASE HAVE SHOP MADE
85
LINE FUEL COMPENSATING
90
RUBBER PAD FUEL LINE TO BRACKET
95
CLAMP FUEL LINE TO BRACKET
100
PROTECTIVE RAIL LATERAL UNDERRUN PROTECTION, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BASE SUPPORT TO SIDE MEMBER
