Mercedes A9405201433 - Кронштейн

2528 L - 2533 L 950.614

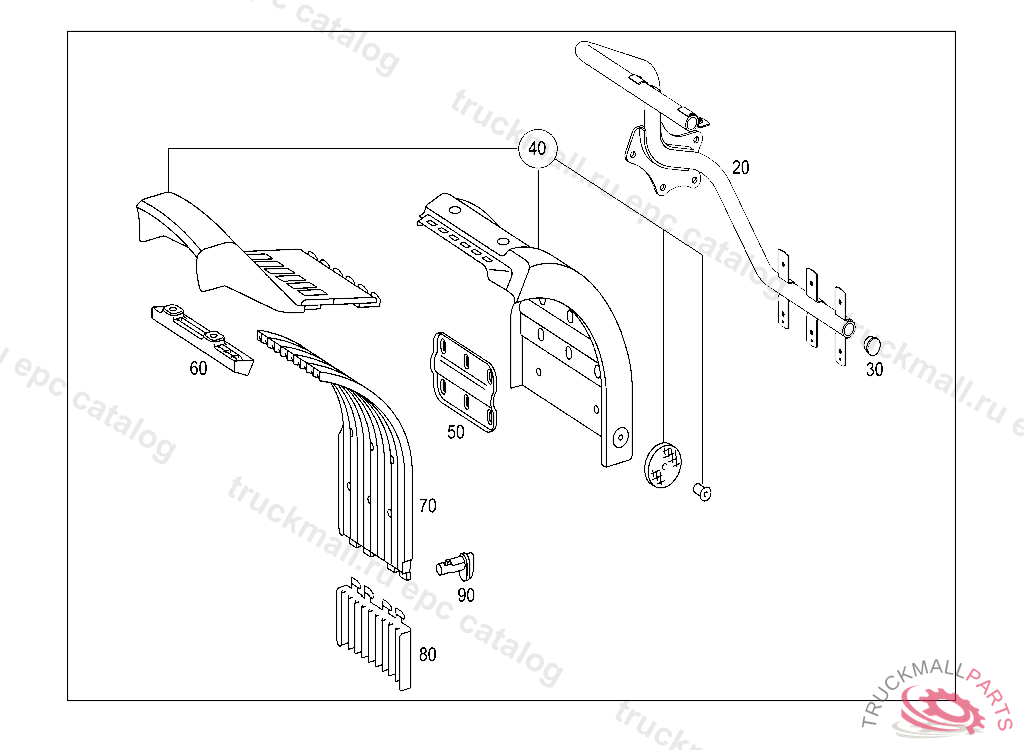

52 SHEET METAL,AIR INTAKE - 001 FRONT FENDERS

Поз.
Артикул
Описание
20
A9415206233
SUPPORT RIGHT FRONT FENDER
20
A9405201433
SUPPORT LEFT FRONT FENDER
30
A9405250138
CAP AT BRACKET 30.6MM
40
A9408800806
FRONT FENDER REAR RIGHT EINZELTEILE BM 940.899, NO.7C72 I....... I .......I....... III I FOR COMPONENT PARTS SEE SPARE PARTS LIST
40
A9408800706
FRONT FENDER REAR LEFT EINZELTEILE BM 940.899, NO.7C72 I....... I .......I....... III I FOR COMPONENT PARTS SEE SPARE PARTS LIST
50
A9418810311
PLATE FENDER TO BRACKET
60
A9408810106
RAIL TOP RIGHT
60
A9408810006
RAIL TOP LEFT
70
A9408800122
SPLASH GUARD RIGHT REAR, TO BE ADAPTED DURING ASSEMBLY
70
A9408800022
SPLASH GUARD LEFT REAR, TO BE ADAPTED DURING ASSEMBLY
80
A9418803222
SPLASH GUARD REAR BOTTOM 100 MM
90
A0009911455
PIN SPLASH GUARD
