Поз.
Артикул
Описание

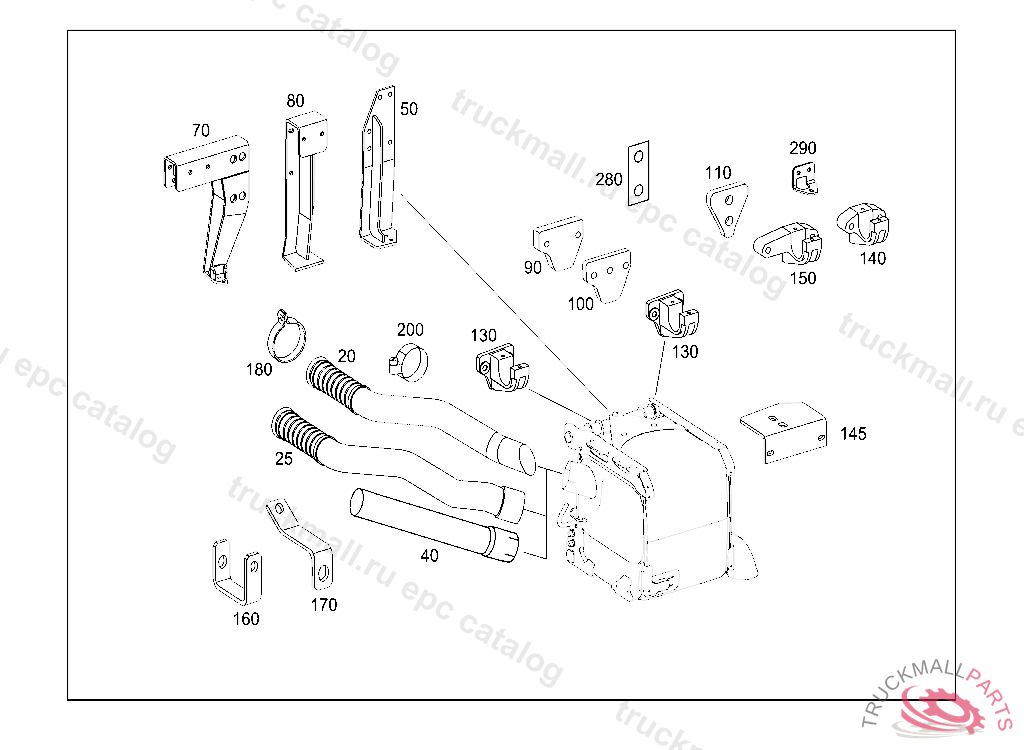

20
EXHAUST PIPE AT MUFFLER
20
EXHAUST PIPE AT MUFFLER
20
EXHAUST PIPE AT MUFFLER
20
EXHAUST PIPE AT MUFFLER
25
EXHAUST GAS LINE AT MUFFLER
40
EXHAUST PIPE (CONNECTING PIPE)
50
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
70
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
70
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
80
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
90
PLATE MOUNTING PARTS 12MM
100
PLATE MOUNTING PARTS 5MM
110
PLATE MOUNTING PARTS 10MM
110
PLATE MOUNTING PARTS 5MM
130
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER,INO.7390III I I
140
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER,INO.7390III I I
140
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER,INO.7390III I I
145
BRACKET MOUNTING PARTS
150
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER,INO.7390III I I
160
BRACKET MOUNTING PARTS
170
BRACKET MOUNTING PARTS
180
CLAMP EXHAUST PIPE TO BRACKET
180
CLAMP TAIL PIPE TO EXHAUST MUFFLER
180
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
180
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
180
CLAMP MOUNTING PARTS
200
CLAMP , Replaced By: A0059970690
200
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
200
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
200
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
280
INSERT MOUNTING PARTS 9.5MM
290
BRACKET EXHAUST PIPE TO SIDE MEMBER
