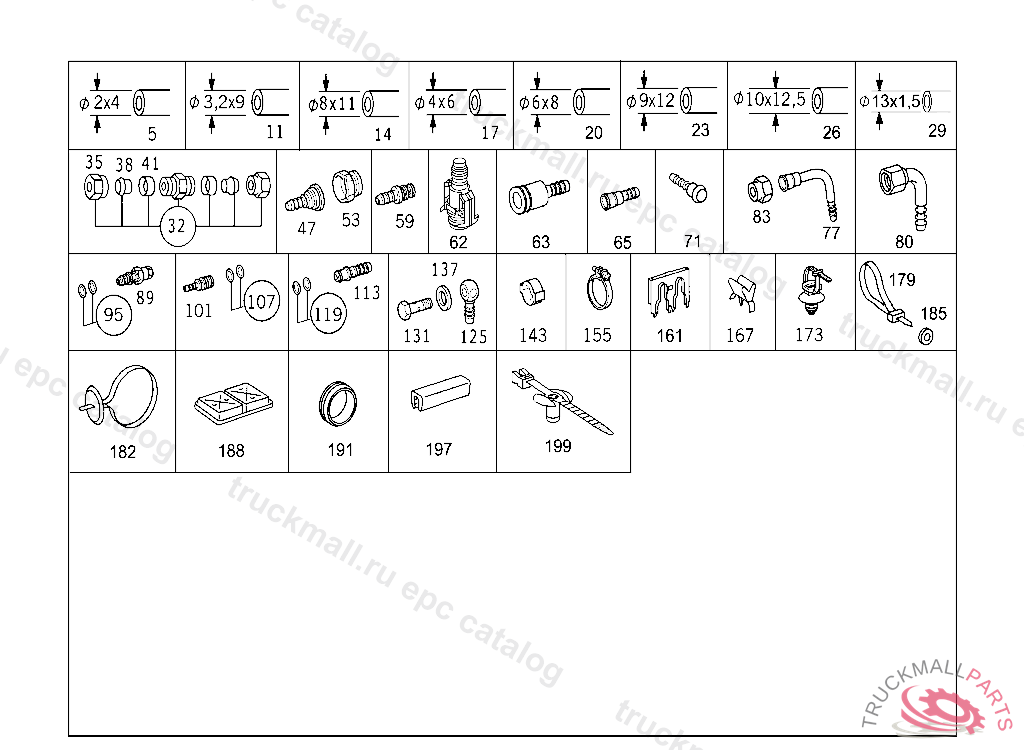

Поз.
Артикул
Описание
5
HOSE FUEL LINE, ORDER BY THE METER
5
PLASTIC TUBE2X4MM, ORDER BY THE METER
11
HOSE PLASTIC PIPE,K 223529
14
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
17
PLASTIC PIPE RISING PIPE 4X6 MM
20
PLASTIC PIPE AERATION, ORDER BY THE METER
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
26
HOSE. PLASTIC PIPE , Replaced By: A0139971282
29
PLASTIC PIPE10X13MM, ORDER BY THE METER
32
FITTING (PARTS KIT),LINE RUPTURE
32
FITTING (PARTS KIT),LINE RUPTURE
32
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
32
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
35
UNION NUT
35
UNION NUT LINE CONNECTION
35
UNION NUT LINE CONNECTION
35
UNION NUT LINE CONNECTION, Replaced By: N000000006239
38
SEAL CONE LINE CONNECTION
38
SEAL CONE
38
GLAND LINE CONNECTION
41
SLEEVE LINE CONNECTION
41
SLEEVE LEAK LINE
41
SLEEVE LINE CONNECTION
47
COUPLING , Replaced By: A0004762524, +001A0004762124
53
CAP LINE CONNECTION
59
COUPLING. CONNECTOR , Replaced By: A0004762524, +001A0004762124
62
CONNECTOR LINE CONNECTION
63
CONNECTOR LINE CONNECTION 10MM
65
CONNECTOR LINE CONNECTION
71
FITTING RETURN LINE,K 169122
77
CONNECTOR LINE CONNECTION, 90 DEGREE PIPE BEND,026097
80
CONNECTOR LINE CONNECTION
80
CONNECTOR , Replaced By: A0029904678
83
UNION NUT RETURN LINE
89
CONNECTOR
95
SEAL RING FUEL GAUGE SENDER UNIT CONNECTION
101
CONNECTOR BREATHER LINE CONNECTION
107
SEAL RING FUEL GAUGE SENDER UNIT CONNECTION
113
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
119
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
125
BANJO UNION FEED
125
BANJO UNION , Replaced By: N000000000364
125
BANJO UNION , Replaced By: N000000000363
125
BANJO UNION , Replaced By: N000000000362
125
BANJO UNION HOSE WIDTH, / I.D., 10/14 MM
125
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
125
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
131
HOLLOW SCREW FUEL LINE TO FEED PUMP
137
SEAL RING FUEL LINE TO FEED PUMP
143
LOOM TIE LINE MOUNTING
155
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059972790
155
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
155
CLAMP LINE MOUNTING
161
LOCK FUEL GAUGE SENDER UNIT CONNECTION
167
BRACKET TO MOUNT FUEL LINES
173
CABLE TIE. LOOM TIE150 X 3.6 MM
173
CABLE STRAP202X4.8MM
179
CABLE TIE LINE MOUNTING 375X8.4MM
182
LOOM TIE , Replaced By: A0069971190
182
CABLE TIE. LOOM TIE378 X 7.6 MM
185
WASHER BRACKET TO LEFT SIDE MEMBER
185
WASHER , Replaced By: A3609902340
185
WASHER COMPRESSED AIR LINE TO BRACKET
185
WASHER25MM
188
PLATE CABLE HARNESS MOUNTING
191
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
197
EDGE GUARD SECTION PROTECTION AGAINST SCORING, ORDER BY THE METER
199
CABLE STRAP202X4.8MM
