Mercedes A0049924701 - НАПРАВЛЯЮЩАЯ ПЛИТЫ КРЕПЕЖ

25.. LS 963.423

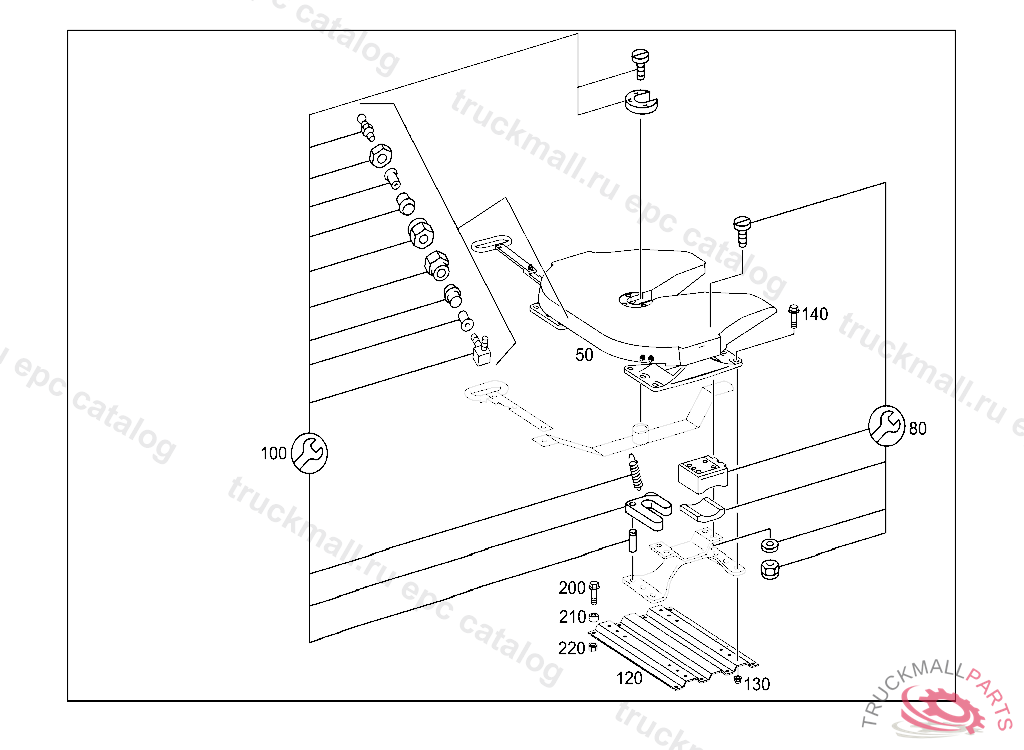

31 FRAME - 001 FIFTH WHEEL COUPLING

Поз.
Артикул
Описание
50
A0003151692
SEMITRAILER COUPLINGJSK 37 CZ
80
A0003151109
RS SEMITRAILER COUPLING MOUNTING FA. JOST 40MM
100
A0003150391
REPAIR KIT FASTENER
120
A9603170021
FASTENING PLATE40MM
130
A0029907650
HEXAGON NUT W COLLAR FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
140
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
200
N000000005581
HEXAGON HEAD BOLT FIFTH-WHEEL COUPLING TO FRAME M20X1.5X60
200
N000000005418
HEXAGON HEAD BOLT MOUNTING PLATE TO SIDE MEMBER AND TO AUXILIARY FRAME M20X1.5X60
210
A0049924701
BUSH WITHOUT CHAMFER MOUNTING PLATE TO ANGLE
220
A0029907950
HEXAGON NUT W COLLAR MOUNTING PARTS M20X1.5
