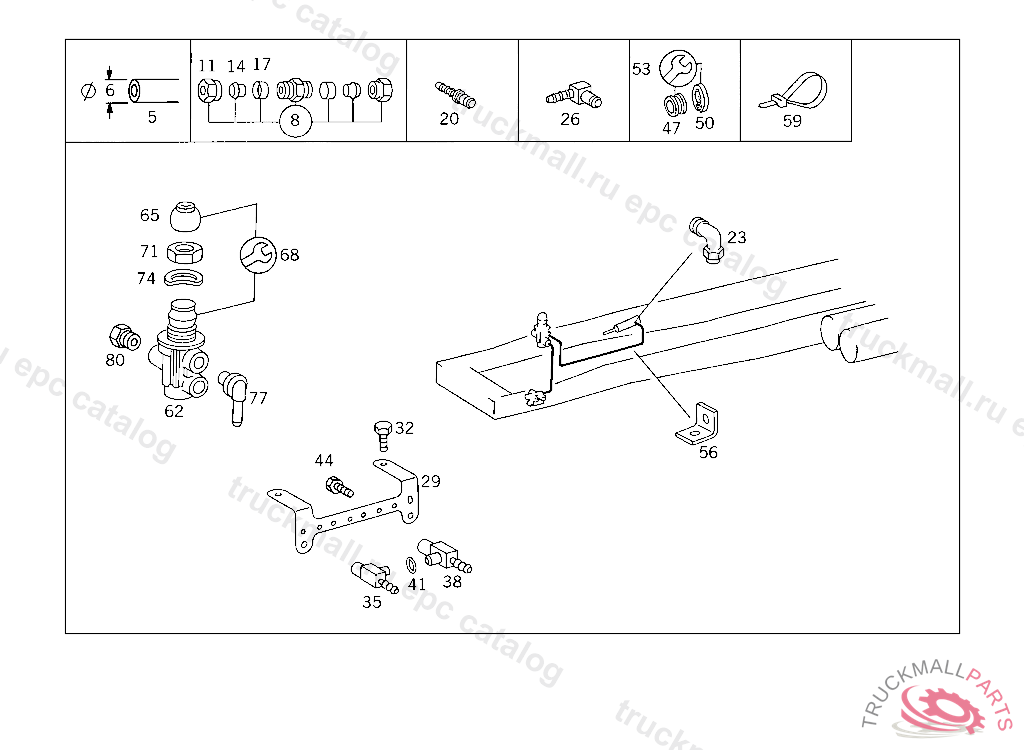

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
UNION NUT
14
SEAL CONE
14
GLAND , Replaced By: A0019901667
17
SLEEVE LEAK LINE
20
CONNECTOR HOSE WIDTH, 6 MM,TO M16
20
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
20
CONNECTOR , Replaced By: A0029905478
20
CONNECTOR , Replaced By: A0029905378
23
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
23
FITTING FROM PUMP TO CYLINDER
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
26
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
29
BRACKET DISTRIBUTOR TO CAB
32
SCREW COVER PLATE TO COVER PLATE M 6 X 10
32
SCREW , Replaced By: N304017006034
35
CONNECTOR DISTRIBUTOR TO CAB
38
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
41
SEAL RING
44
SCREW COVER PLATE TO COVER PLATE M 6 X 10
44
SCREW , Replaced By: N304017006034
47
SEAL RING , Replaced By: A0009940747
47
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
47
LOCK RING LINE CONNECTION
50
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
50
LOCK , Replaced By: A0009945448
50
LOCK LINE CONNECTION
53
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
53
REPAIR KIT , Replaced By: A0309971748
53
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
56
BRACKET SENSOR CABLE TO FRONT AXLE
59
LOOM TIE LINE MOUNTING
59
LOOM TIE LINE MOUNTING 280 MM
62
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
62
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
65
CUP 3/2-WAY VALVE WABCO
68
REPAIR KIT 3/2-WAY VALVE BOSCH
68
REPAIR KIT 3/2-WAY VALVE WABCO
71
NUT SUCTION LINE TO OIL PUMP
74
SPRING WASHER AT CAB FLOOR
77
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
80
SCREW. UNION SCREW LINE CONNECTION
80
SCREW. UNION SCREW , Replaced By: A0009973734
999
ELBOW FITTING
