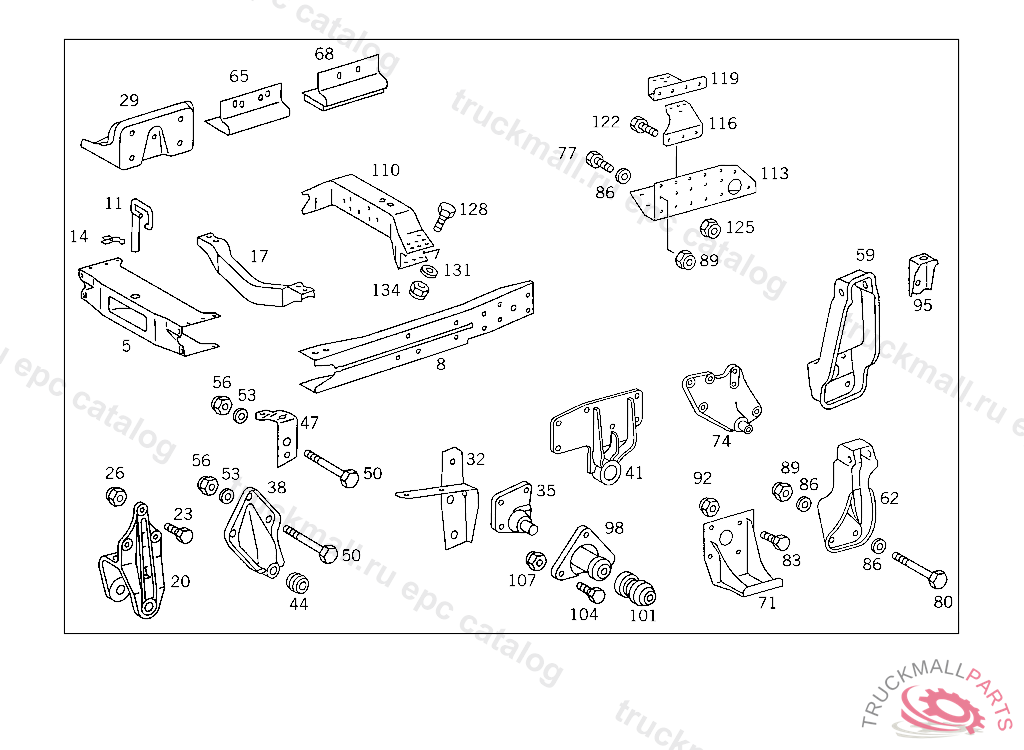

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
20
FRONT SPRING BRACKET FRONT SPRING FRONT BRACKET
23
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
23
SCREWM 16X16X20X45
26
NUT CONSOLE TO SUPPORT
26
NUT STEERING SUPPORT TO FRAME
26
NUT , Replaced By: N910113014000
26
NUT , Replaced By: N910113016001
29
SUPPORT ENGINE FRONT MOUNTING
32
BRACKET OIL LINES
38
CONSOLE TORSION BAR BEARING,5 296594
44
BEARING TORSION BAR BEARING
47
BRACKET IDLING ADJUSTMENT
50
SCREW CONSOLE TO SIDE MEMBER
53
WASHER
56
NUT SUPPORT TO SIDE MEMBER
59
CONSOLE FRONT SHOCK ABSORBERS
65
ANGLE AXLE STOP
98
REAR SUBFRAME FRONT SPRING REAR BRACKET
98
REAR SUBFRAME , Replaced By: A6753200170
101
BUSHING
104
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
104
SCREW , Replaced By: N308676012040
107
NUT , Replaced By: N910113012003
107
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
110
CROSS MEMBER TRANSMISSION,5 519079
113
REINFORCEMENT LEFT
113
REINFORCEMENT RIGHT
116
REINFORCEMENT RIGHT
116
REINFORCEMENT LEFT
119
ANGLE LEFT
122
SCREW STRUT TO CROSS MEMBER M 10X25
122
SCREW CONNECTOR TO REAR SHIFTING ROD
122
SCREW , Replaced By: N304017010040
122
SCREW , Replaced By: N304017010047
125
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
128
SCREW BRACKET TO FRAME M 12X35
131
WASHER BRACKET TO FRAME
134
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
134
NUT , Replaced By: N910113012003
