Поз.
Артикул
Описание
5

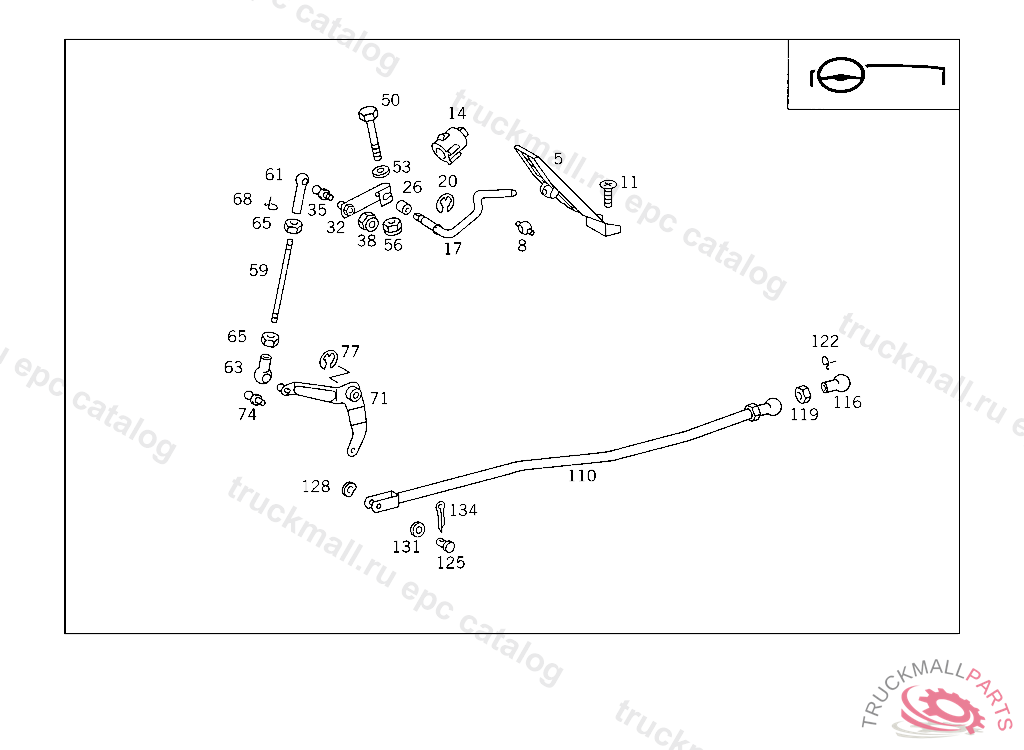

ACCELERATOR PEDAL
8
JOINT
11
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
14
STOP FULL THROTTLE
17
LEVER ACCELERATOR PEDAL
20
LOCK PLATE
26
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
32
LEVER CONTROL, IN CASE OF TURBOCHARGED ENGINE,ONLY INSTALL LEVER HAVING SCREWED BALL PIVOT
35
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
35
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
38
NUT , Replaced By: N913004006001
38
NUT PUMP TO BRACKET
50
SCREW , Replaced By: N304017006012
50
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
56
NUT , Replaced By: N913004006001
56
NUT PUMP TO BRACKET
59
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
61
BALL SOCKET PULL ROD TO LEVER
63
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
65
NUT BALL PIVOT TO LEVER
68
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
71
LEVER (INTERMEDIATE LEVER)
74
BALL STUD. BALL PIVOT TOP B10X4,5 MM
77
LOCK PLATE INTERMEDIATE BEARING
110
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
116
BALL SOCKET ROD TO BALL PIVOT
119
NUT
122
SECURING CLIP. CIRCLIP
125
PIN WIRE CABLE TO LEVER
128
SPRING WASHER , Replaced By: N000137008212
128
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
131
WASHER BRACKET TO CROSS MEMBER
134
COTTER PIN LEVER TO ROD
134
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
