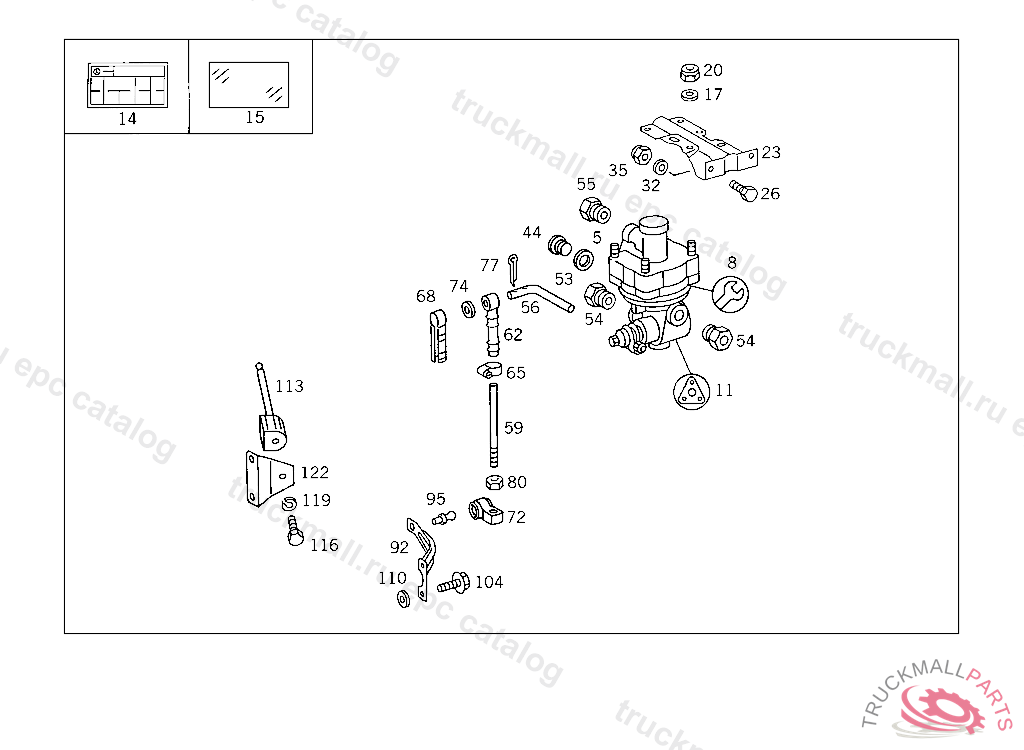

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
8
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
11
REPAIR KIT BRAKE POWER REGULATOR BOSCH
14
GUIDE SIGN LOAD-DEPENDING BRAKE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422
15
ADHESIVE FOIL GUIDE SIGN
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER , Replaced By: N000125008443
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
20
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
BRACKET BRAKE POWER REGULATOR
26
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
26
SCREW LEFT AND RIGHT CONSOLES TO CAB
26
SCREW , Replaced By: N308676012015
32
WASHER BRACKET TO FRAME
35
NUT SUPPORT TO SIDE MEMBER
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N910113010000
44
SCREW PLUG , Replaced By: N000908022011
44
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
54
SCREW. UNION SCREW LINE CONNECTION
55
SCREW. UNION SCREW , Replaced By: A0009973734
55
SCREW. UNION SCREW LINE CONNECTION
56
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
59
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
62
CONNECTOR PULL ROD TO LEVER
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP , Replaced By: N000000000665
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
72
BALL SOCKET PULL ROD
74
WASHER , Replaced By: N000125008443
74
WASHER EXHAUST MUFFLER TO STRAP
77
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
80
NUT
92
BRACKET OPERATING ROD, TO BE ADAPTED DURING ASSEMBLY
95
BALL PIVOT
104
SCREW BRACKET TO REAR AXLE HOUSING
110
SPACER RING BRACKET TO REAR AXLE HOUSING
