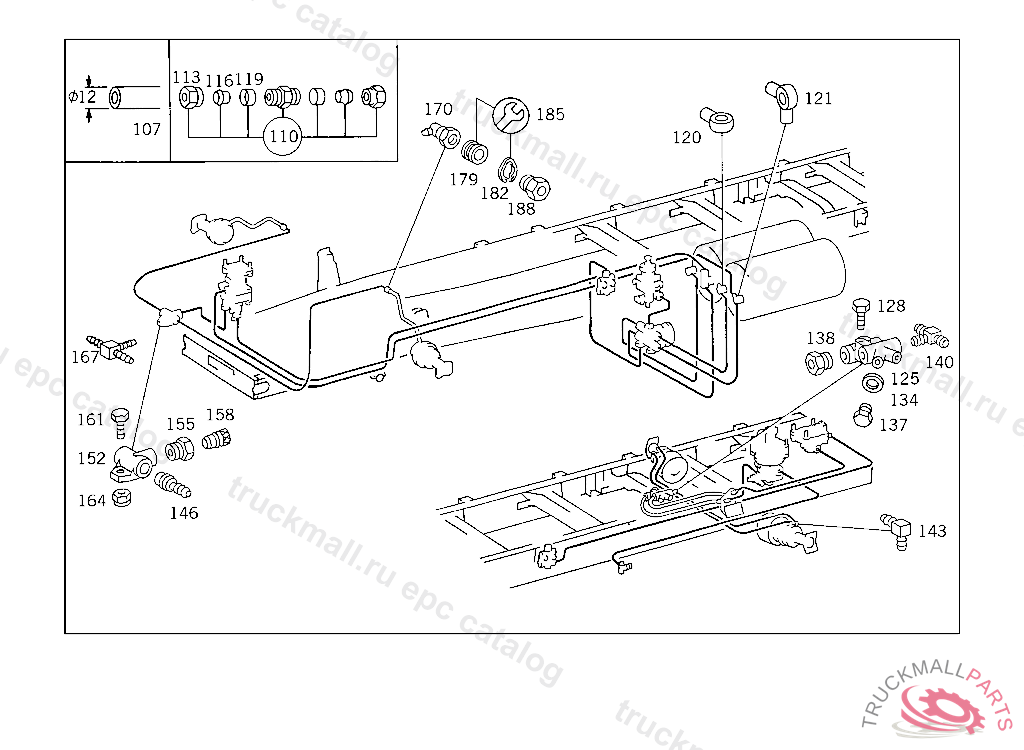

Поз.
Артикул
Описание
107
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
107
HOSE , Replaced By: A0009872827
110
FITTING (PARTS KIT),LINE RUPTURE
110
FITTING , Replaced By: A0029906171
113
UNION NUT LINE CONNECTION
113
UNION NUT LINE CONNECTION, Replaced By: N000000006239
116
SEAL CONE LINE CONNECTION
116
GLAND , Replaced By: A0019901967
119
SLEEVE LINE CONNECTION
120
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
121
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
125
DISTRIBUTOR COMPRESSED AIR LINE
128
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
138
SCREW. UNION SCREW LINE CONNECTION
140
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
146
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
152
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
152
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
155
SCREW. UNION SCREW LINE CONNECTION
155
SCREW. UNION SCREW LINE CONNECTION
158
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
161
SCREW BRACKET TO CROSS CONNECTION STRUT
161
SCREW , Replaced By: N304017008034
164
NUT , Replaced By: N913004008001
167
T-FITTING HOSE WIDTH, 9 MM,TO M 22
167
T-FITTING , Replaced By: A0029909070
170
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
179
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
182
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
185
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
188
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
CONNECTOR REPAIR SIZE
999
T-FITTING
999
CONNECTOR DISTRIBUTOR TO FRAME
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
999
SEAL RING
999
CLAMP , Replaced By: N916016025200
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTOR , Replaced By: A0019903978
999
CONNECTOR DISTRIBUTOR TO FRAME
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
GROMMET LINE MOUNTING
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
CLAMP HOSE TO BRACKET 25/20,5 206397
