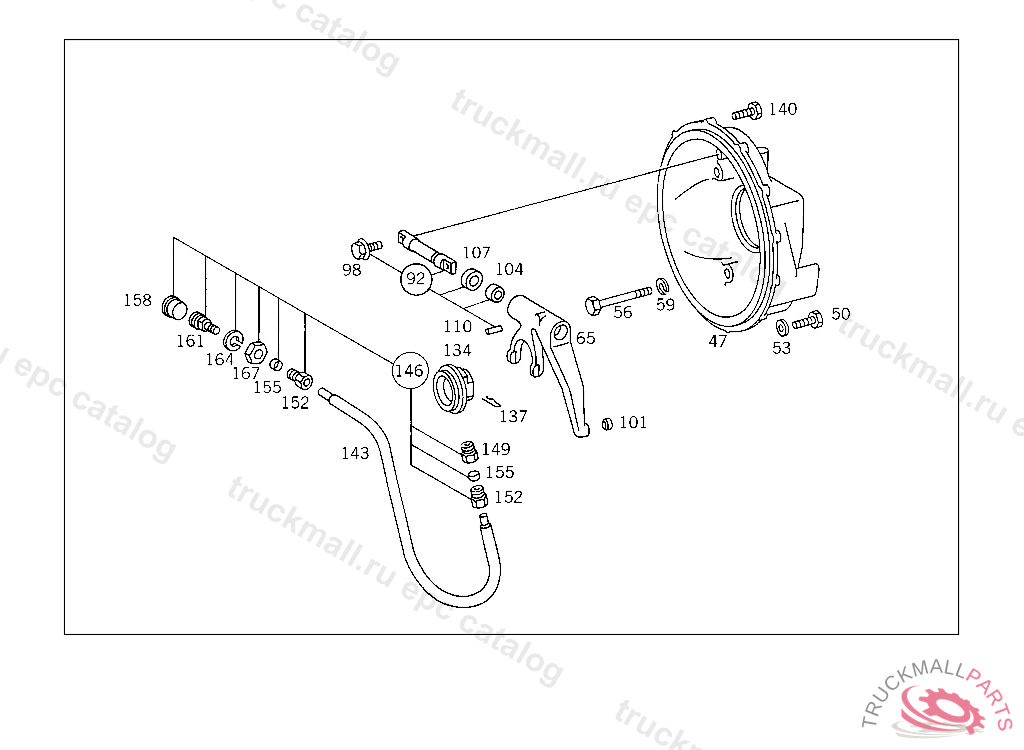

Поз.
Артикул
Описание
47
BELL HOUSING
50
SCREW COVERING TO BEARING BRACKET
53
SEAL RING SOLENOID VALVE A 18X24
56
SCREW , Replaced By: N308676018010
56
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
59
LOCK WASHER BELL HOUSING TO TRANSMISSION
65
RELEASE LEVER ,5 418252
92
SHAFT (PARTS KIT),RELEASE SHAFT
98
SCREW RELEASE LEVER TO BELL HOUSING
101
BEARING RELEASE LEVER,5 418252
104
NEEDLE BEARING RELEASE LEVER
107
SEAL RING RELEASE LEVER
110
CLAMPING SLEEVE RELEASE LEVER TO SHAFT
134
RELEASE BEARING
137
SPRING RELEASE LEVER TO RELEASE BEARING
140
SCREW REAR EXHAUST PIPE TO MUFFLER
143
HOSE RELEASE BEARING LUBRICATION
146
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
149
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
152
UNION SCREW RELEASE COLLAR LUBRICATION
155
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
158
CAP RELEASE BEARING LUBRICATION
161
GREASE NIPPLE RELEASE COLLAR LUBRICATION
164
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
167
NUT RELEASE BEARING LUBRICATION
167
NUT , Replaced By: N308675014002
167
NUT , Replaced By: N308675014000
