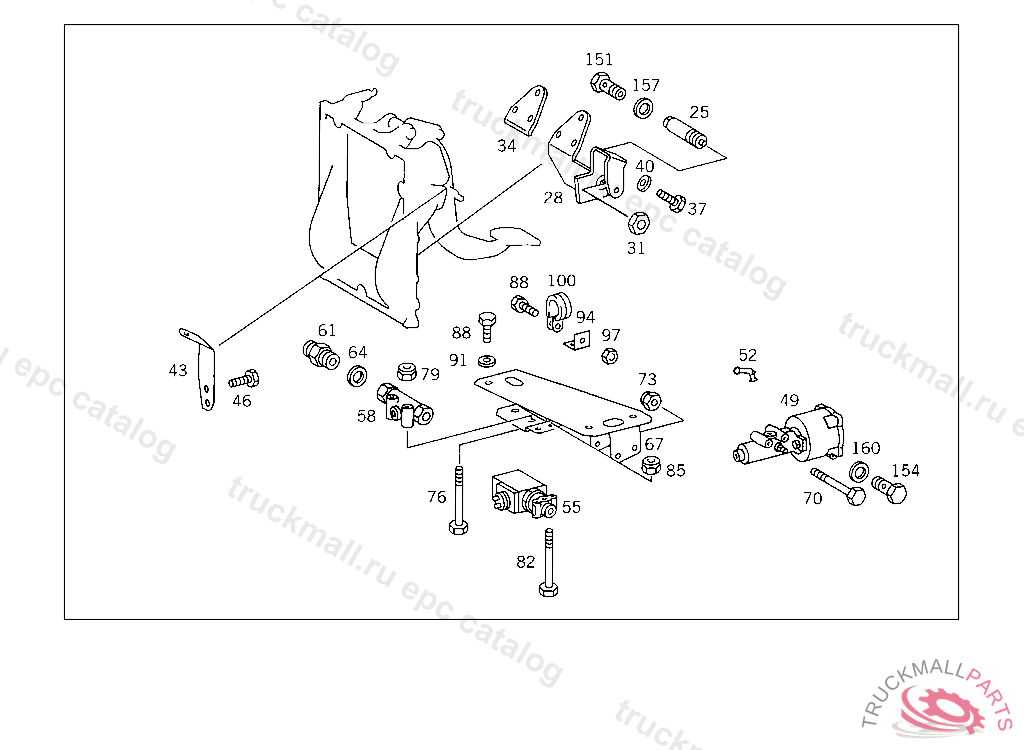

Поз.
Артикул
Описание
25
CYLINDER POWER CYLINDER
28
BEARING BRACKET POWER CYLINDER
31
NUT POWER CYLINDER TO BRACKET
34
PLATE BEARING BRACKET AND STOP TO PEDAL BEARING BRACKET
37
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
37
SCREW , Replaced By: N304017008027
40
WASHER , Replaced By: N009021008213
40
WASHER BRACKET TO LEFT SIDE MEMBER
43
BRACKET PEDAL BEARING BRACKET
46
SCREW BRACKET ON LOAD SENSOR
49
CLUTCH MASTER CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0002950905
49
CLUTCH MASTER CYLINDER RESERVOIR ON MASTER CYLINDER
49
CLUTCH MASTER CYLINDER RESERVOIR ON MASTER CYLINDER
49
CLUTCH MASTER CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 006760, Replaced By: A0002950705
49
CLUTCH MASTER CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 006760, Replaced By: A0002950805
49
CLUTCH MASTER CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 006760, Replaced By: A0002950905
52
INTERMEDIATE PIECE , Replaced By: A0002950036
52
INTERMEDIATE PIECE
55
VALVE (3/2-WAY SOLENOID VALVE) EKS
58
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6552950120
61
FITTING
61
SCREW-IN FITTING HYDRAULIC LINE TO CLUTCH BOOSTER
64
SEAL RING CLUTCH BOOSTER
67
BRACKET BRACKET TO CAB FLOOR,5 767801
67
BRACKET BRACKET TO CAB FLOOR,5 767800
70
SCREW MASTER CYLINDER TO BRACKET
70
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
73
NUT PUMP TO BRACKET
73
NUT AT FILTER BRACKET
73
NUT , Replaced By: N913004006001
76
SCREW VALVE TO BRACKET
79
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
79
NUT , Replaced By: N913004008001
82
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
85
NUT
85
NUT , Replaced By: N304035008001
88
SCREW , Replaced By: A0079900801
88
SCREW REDUCTION VALVE TO BRACKET
91
WASHER EXHAUST MUFFLER TO STRAP
91
WASHER , Replaced By: N000125008443
94
ANGLE LINE MOUNTING
97
NUT
100
CLAMP LINE MOUNTING
151
HOLLOW SCREW LINE CONNECTION
154
FITTING LINE CONNECTION
157
SEAL RING LINE CONNECTION
160
SEAL RING LINE CONNECTION
999
SEAL RING
999
GROMMET
999
LINE FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE 350 MM,556500-604337
999
CONNECTOR DISTRIBUTOR TO CAB
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,K 032902
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,K 032903N 820662
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
BRACKET SHUTTLE VALVE
999
PIPE FROM SHUTTLE VALVE TO CYLINDER,5 767801
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM SHUTTLE VALVE TO CYLINDER,5 767801
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
999
PIPE CLUTCH ACTUATION
999
PIPE CLUTCH ACTUATION
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
HOLLOW SCREW HEATING CONNECTION
