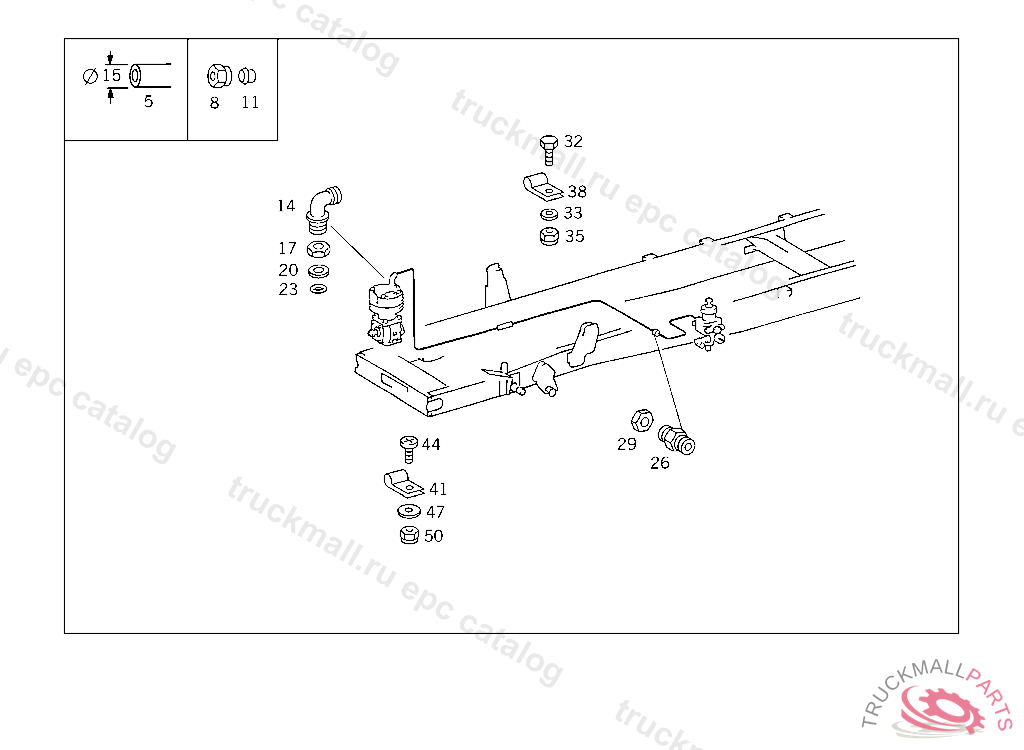

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
ELBOW FITTING , Replaced By: A0039901671
14
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
17
NUT SUCTION LINE TO OIL PUMP
20
THRUST RING SUCTION LINE TO OIL PUMP
23
SEAL RING LINE CONNECTION
26
BULKHEAD FITTING THROUGH SIDE MEMBER
29
NUT CHECK VALVE TO AIR RESERVOIR
32
SCREW , Replaced By: N000933008337
32
SCREW , Replaced By: A0099900101
32
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
33
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT , Replaced By: N913004008001
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
CLAMP HOSE TO BRACKET 25/20,5 206397
38
CLAMP OIL DIPSTICK TO RADIATOR
38
CLAMP , Replaced By: N916016025200
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
44
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
44
SCREW CLAMP TO BRACKET
47
WASHER , Replaced By: N009021006208
47
WASHER COMPRESSED AIR LINE TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
999
SEAL RING
999
GROMMET LINE MOUNTING
