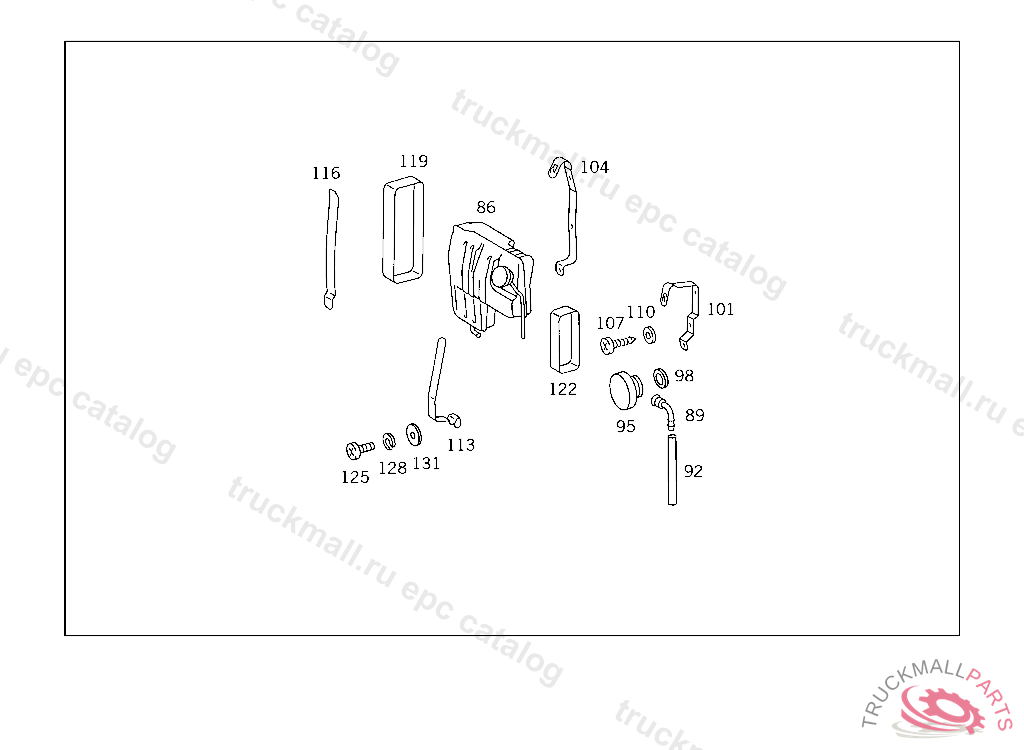

Поз.
Артикул
Описание
86
TANK CAB,FRONT,5 129373
89
DRAIN PIPE EXPANSION TANK
92
HOSE , Replaced By: A0219977682
95
RADIATOR CAP
98
GASKET O.D., 37 MM
101
BRACKET EXPANSION TANK,LEFT
104
BRACKET EXPANSION TANK,RIGHT
107
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
110
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
113
STRAP EXPANSION TANK,LEFT
116
STRAP EXPANSION TANK,RIGHT
119
SHIM EXPANSION TANK,LEFT
122
SHIM EXPANSION TANK,RIGHT
125
SCREW SWITCH TO APPARATUS PLATE, 10/20 UP TO IDENT NO. 4 422632, 50/60 UP TO IDENT NO. 4 422723
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
131
WASHER , Replaced By: N009021006208
