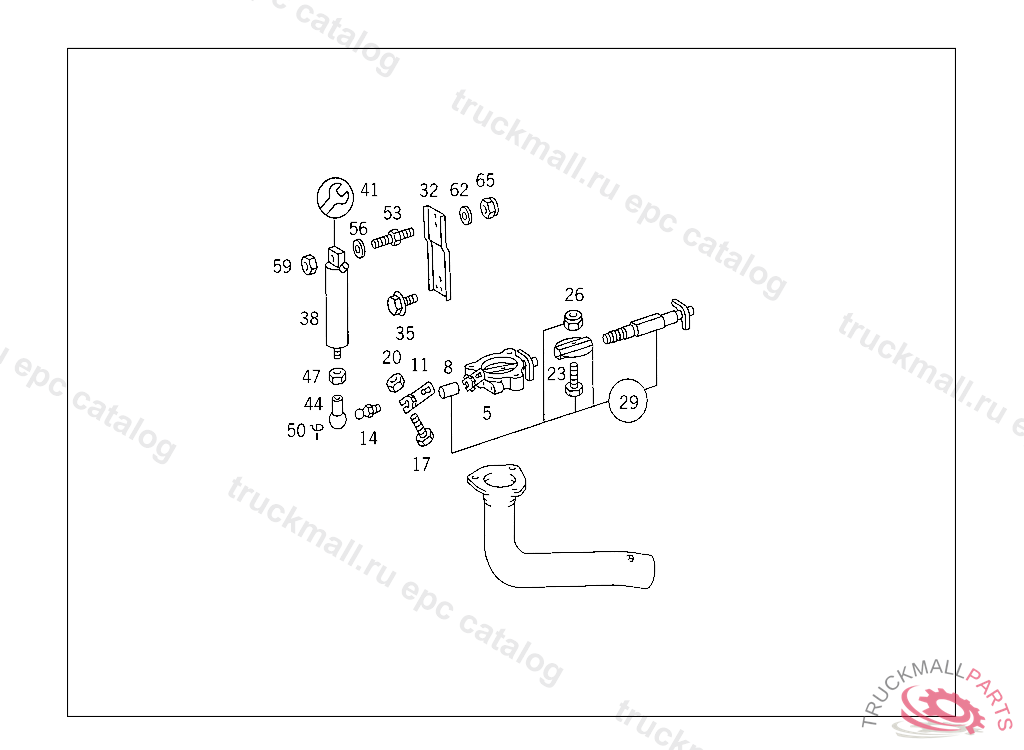

Поз.
Артикул
Описание
5
THROTTLE HOUSING , Replaced By: A3661405353
8
BUSHING
11
LEVER EXHAUST-BRAKE THROTTLE VALVE
14
BALL PIVOT BOTTOM B13X5 MM
17
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
20
NUT BALL PIVOT TO LEVER
23
SCREW , Replaced By: A0099900101
26
NUT COVERING TO BRACKET
29
VALVE PARTS KIT,K 181318N 817421 - N 825202
32
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
35
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
38
CYLINDER INTERMEDIATE SPEED STOP
38
CYLINDER , Replaced By: A0004305926
41
REPAIR KIT SHIFTING CYLINDER TO KNORR, SZ 1130 I/74963,000 430 3026
41
REPAIR KITTO 000 430 48 26,KNORR
47
NUT , Replaced By: N304035008001
50
SECURING CLIP DUMPER PUMP, UP TO IDENT NO. 4 473926 FROM IDENT NO. MICROFICHE MODEL 714.0
53
PIN , Replaced By: A4421440574
56
WASHER TRAILER PLUG SOCKET TO BRACKET
59
NUT , Replaced By: N304032008006
62
WASHER , Replaced By: N007349008007
65
NUT , Replaced By: N913004008001
