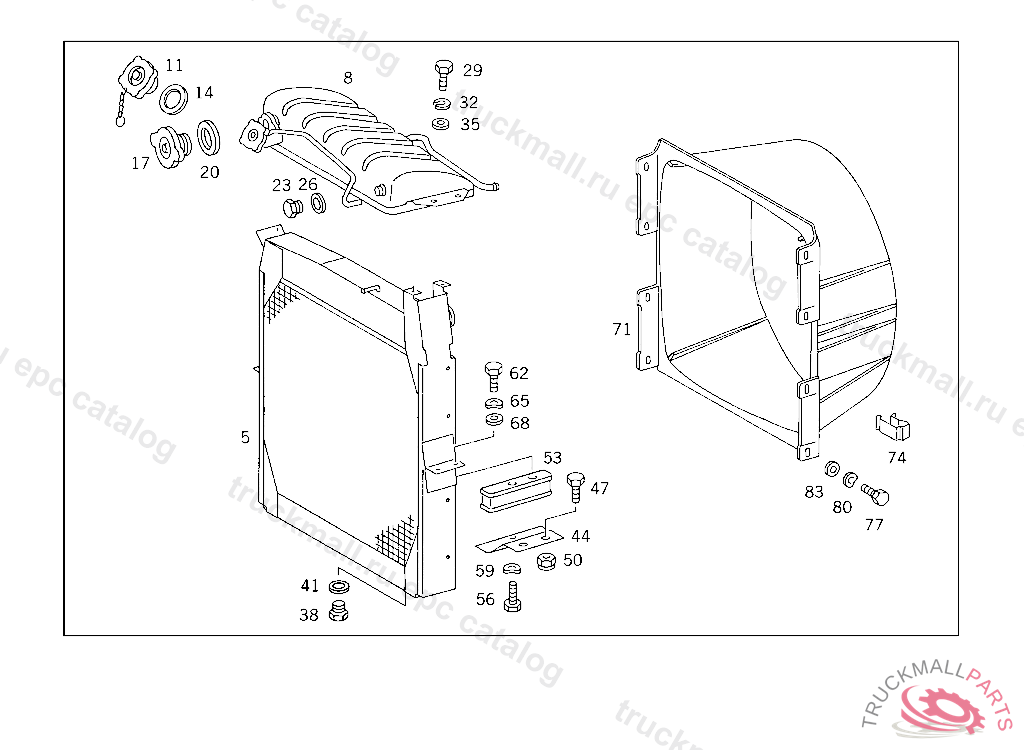

Поз.
Артикул
Описание
5
RADIATOR WATER BEHR
8
TANK EXPANSION TANK
11
RADIATOR CAP FILLER NECK
14
GASKET O.D., 37 MM
17
RADIATOR CAP CENTRAL
20
GASKET O.D., 52 MM
23
SCREW PLUG WATER SEPARATOR
26
SEAL RING INJECTION PUMP
29
SCREW , Replaced By: N304017008016
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
WASHER TRAILER PLUG SOCKET TO BRACKET
38
SCREW PLUG WATER SEPARATOR
41
SEAL RING INJECTION PUMP
44
SUPPORT RADIATOR MOUNTING,4 428845
47
SCREW , Replaced By: N308676012026
50
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
53
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
56
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
59
SPRING WASHER STEERING COLUMN BRACKET TO CAB
62
SCREW REAR EXHAUST PIPE TO MUFFLER
65
SPRING WASHER STEERING COLUMN BRACKET TO CAB
68
WASHER GROUND CABLE
71
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
77
SCREW COVER PLATE TO BRACKET
77
SCREW COVER PLATE TO BRACKET
80
SPRING WASHER LICENSE PLATE TO BRACKET
83
WASHER , Replaced By: N009021006208
83
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
