Главная
›
Mercedes
›
BUS
›
MBO 800/38
›
684.088
›

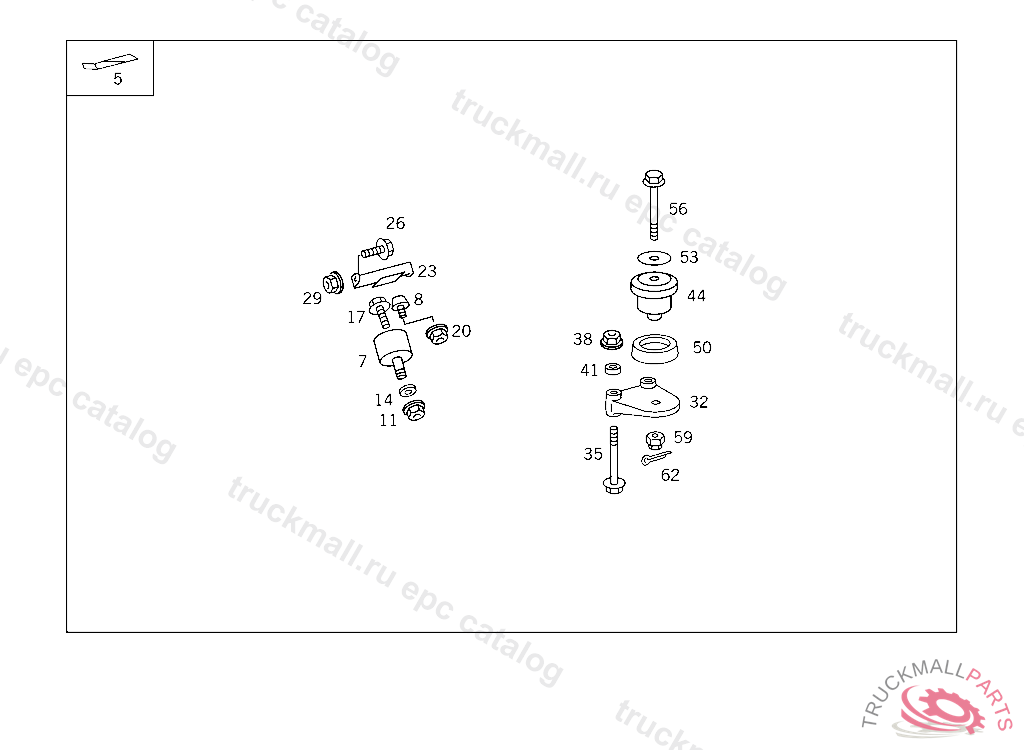

24 ENGINE SUSPENSION
›
060 ENGINE SUSPENSION
Mercedes N910105008005 - БОЛТ М8
MBO 800/38 684.088
24 ENGINE SUSPENSION - 060 ENGINE SUSPENSION
Поз.
Артикул
Описание
5
A6842414032
STIFFENING FRONT LEFT
7
A6842410313
RUBBER MOUNTING FRONT
8
A6842410113
RUBBER MOUNTING FRONT
11
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
14
N000125010517
WASHER GROUND CABLE
17
A0059901004
SCREW RUBBER MOUNTING TO ENGINE SUPPORT M 10X14
20
A0009906250
NUT AT FILTER BRACKET
23
A6842400065
STOP RUBBER MOUNT
26
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
29
A0009906350
NUT BRACKET TO BRACKET
32
A6842424101
ENGINE SUPPORT REAR RIGHT
32
A6842424001
ENGINE SUPPORT REAR LEFT
35
N910105014016
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
38
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
41
A6842420250
BUSHING SUPPORTING ARM TO ENGINE
44
A6842420113
RUBBER MOUNTING REAR
50
A6842420065
RUBBER BUFFER
53
A6842420275
WASHER
56
A6842420071
SCREW ,10.2000
59
N000935014002
NUT STEERING BRACKET TO FRAME
62
N000094003218
COTTER PIN ENGINE CONTROL
999
A0009906950
NUT PARTICLE FILTER M14
999
N910105014043
SCREWM14X130,10.2000
