Поз.
Артикул
Описание

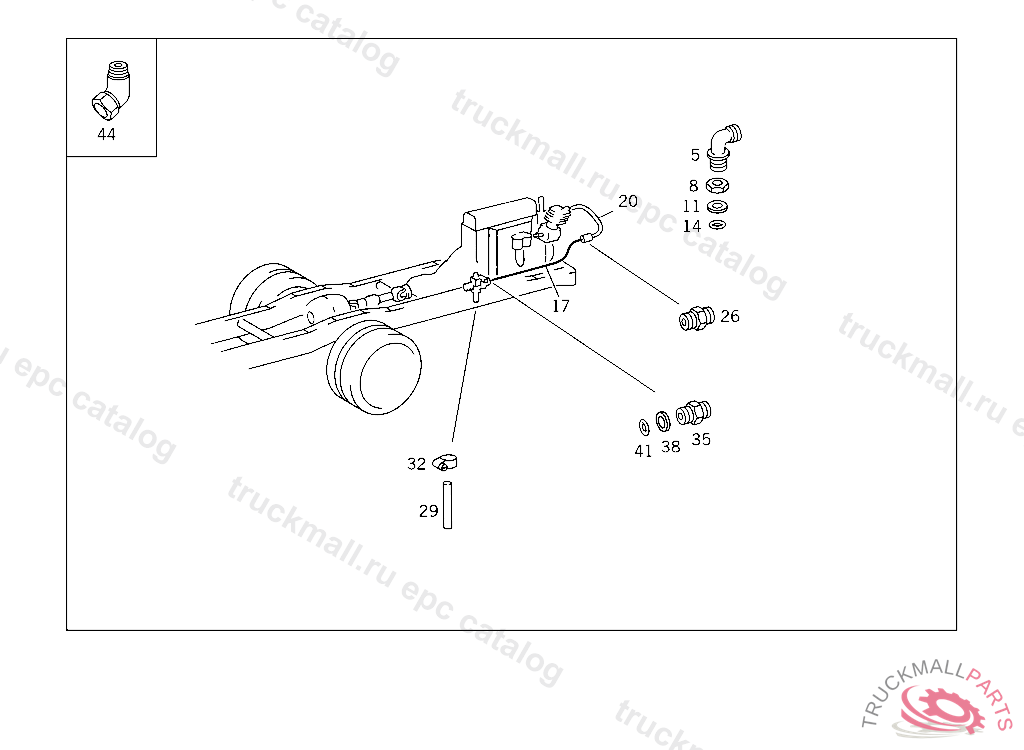

5
ELBOW FITTING AT AIR COMPRESSOR
8
NUT SUCTION LINE TO OIL PUMP
11
THRUST RING SUCTION LINE TO OIL PUMP
14
SEAL RING LINE CONNECTION
17
PART NAME MISSING AIR COMPRESSOR LINE
20
PART NAME MISSING AIR COMPRESSOR LINE
26
PART NAME MISSING CONNECTOR
29
HOSE AT PRESSURE REGULATOR 300 MM
32
PART NAME MISSING CLAMP 20-32M
35
ELBOW FITTING AT PRESSURE REGULATOR
35
ELBOW FITTING AT PRESSURE REGULATOR
38
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
41
O-RING CHECK VALVE TO AIR RESERVOIR
44
PART NAME MISSING ELBOW FITTING 45 GR. 1/2NPTFM X 5/8 T
