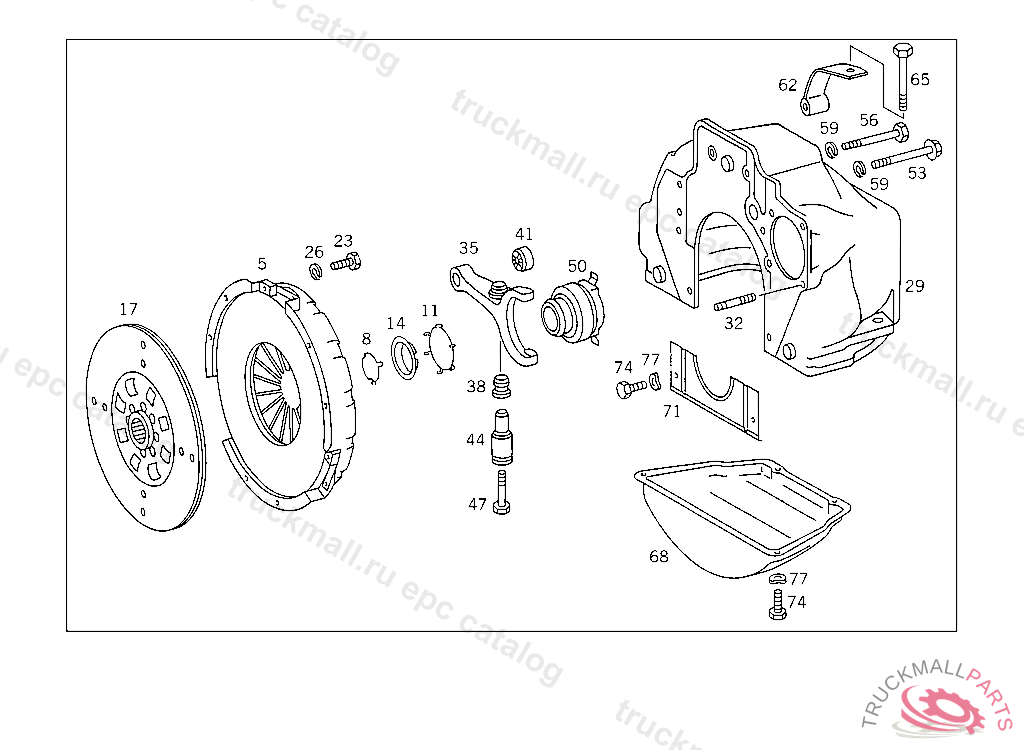

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE
5
CLUTCH PRESSURE PLATE
8
LOCKTO 004 250 51 04
11
SPRINGTO 004 250 51 04
14
RELEASE RINGTO 004 250 51 04
17
CLUTCH DISC , Replaced By: A0132505403
17
CLUTCH DISC
17
CLUTCH DISC ASBESTOS-FREE LINING F&S
23
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
26
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
29
BELL HOUSING
32
STUD STARTING MOTOR MOUNTING
32
STUD , Replaced By: A0009904805
35
RELEASE LEVER
38
BUSHINGTO 688 250 00 13
41
BEARING RELEASE LEVER,5 418252
44
SHAFT RELEASE LEVER
47
SCREW CLUTCH TO FLYWHEEL
50
RELEASE BEARING
53
SCREW , Replaced By: A0029906804
56
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X145
59
LOCK WASHER BATTERY CABLE
68
BELL HOUSING LOWER PART
68
BELL HOUSING LOWER PART,5 332727 SEAL DURING ASSEMBLY
68
BELL HOUSING LOWER PART,189328
71
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
74
SCREW , Replaced By: N910106006006
77
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
