Mercedes N071412008300 - Ниппель

L 710 D 688.108

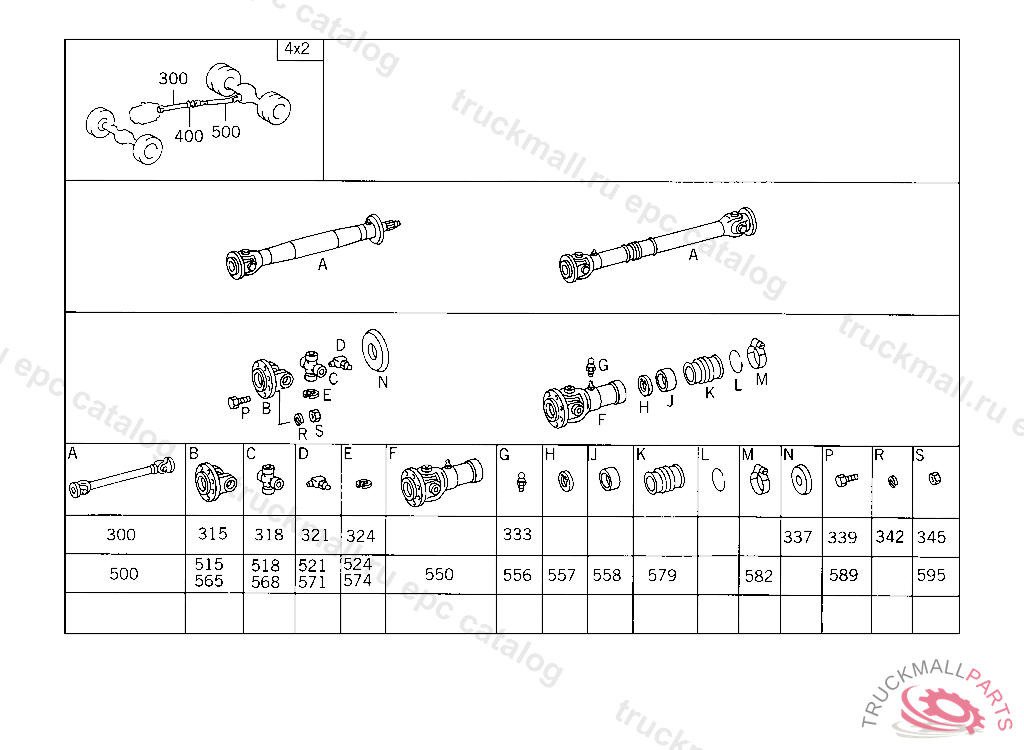

41 PROPELLER SHAFT - 030 PROPELLER SHAFT IL. 1

Поз.
Артикул
Описание
300
A6884100104
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1559 MM
315
A3524110011
DRIVE FLANGE
321
A3459977288
GREASE NIPPLE
321
N071412008300
GREASE NIPPLE
324
A3449947335
SNAP RING2.550 MM
324
A3449947535
SNAP RING2.600 MM
324
A3449948135
SNAP RING2.750 MM
324
A3129941435
SNAP RING2.650 MM
324
A3449947135
SNAP RING2.500 MM
324
A3449948035
SNAP RING2.725 MM
324
A3129941535
SNAP RING2.700 MM
324
A3129941135
SNAP RING2.500 MM
324
A3449947235
SNAP RING2.525 MM
324
A3449947735
SNAP RING2.650 MM
324
A3449947635
SNAP RING2.625 MM
324
A3129941635
SNAP RING2.550 MM
324
A3129941735
SNAP RING2.750 MM
324
A3449947835
SNAP RING2.675 MM
324
A3449947435
SNAP RING2.575 MM
324
A3449947935
SNAP RING2.700 MM
324
A3129941335
SNAP RING2.600 MM
333
N071412008100
GREASE NIPPLE INTERMEDIATE LEVER
337
A3524130061
PROTECTIVE CAP FRONT PROPELLER SHAFT
339
A3529904701
SCREW , Replaced By: A0079901001
342
N000127010202
LOCK WASHER , Replaced By: N912004010102
345
N000934010042
NUT , Replaced By: N308673010001
500
A3844100002
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1520 MM
515
A3524110011
DRIVE FLANGE
518
A3454107031
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
521
A3459977288
GREASE NIPPLE
521
N071412008300
GREASE NIPPLE
524
A3129941135
SNAP RING2.500 MM
524
A3449947535
SNAP RING2.600 MM
524
A3449947335
SNAP RING2.550 MM
524
A3129941535
SNAP RING2.700 MM
524
A3129941435
SNAP RING2.650 MM
524
A3449947135
SNAP RING2.500 MM
524
A3129941635
SNAP RING2.550 MM
524
A3449947635
SNAP RING2.625 MM
524
A3449947235
SNAP RING2.525 MM
524
A3449947735
SNAP RING2.650 MM
524
A3449947435
SNAP RING2.575 MM
524
A3449947935
SNAP RING2.700 MM
524
A3449947835
SNAP RING2.675 MM
524
A3129941335
SNAP RING2.600 MM
550
A3444100008
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
556
N071412008100
GREASE NIPPLE INTERMEDIATE LEVER
557
A3374130080
SEAL RING , PROPELLER SHAFT WITH BOOT
558
A3214110158
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
565
A3524110011
DRIVE FLANGE
568
A3454107031
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
568
A0004101231
UNIVERSAL JOINT CROSS ,B 904280B 967574
571
A3459977288
GREASE NIPPLE
571
N071412008300
GREASE NIPPLE
574
A3129941335
SNAP RING2.600 MM
574
A3449947335
SNAP RING2.550 MM
574
A3129941135
SNAP RING2.500 MM
574
A3449947535
SNAP RING2.600 MM
574
A3449948035
SNAP RING2.725 MM
574
A3129941535
SNAP RING2.700 MM
574
A3449948135
SNAP RING2.750 MM
574
A3129941435
SNAP RING2.650 MM
574
A3449947135
SNAP RING2.500 MM
574
A3129941635
SNAP RING2.550 MM
574
A3449947635
SNAP RING2.625 MM
574
A3449947235
SNAP RING2.525 MM
574
A3449947735
SNAP RING2.650 MM
574
A3129941735
SNAP RING2.750 MM
574
A3449947835
SNAP RING2.675 MM
574
A3449947935
SNAP RING2.700 MM
574
A3449947435
SNAP RING2.575 MM
579
A3524100080
BOOT
579
A3454107280
BOOT REAR PROPELLER SHAFT
582
N916018070000
CLAMP
582
A3449979790
LOOM TIE. CLAMP
589
A3529904701
SCREW , Replaced By: A0079901001
589
A3529900401
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
595
N000934010042
NUT , Replaced By: N308673010001
