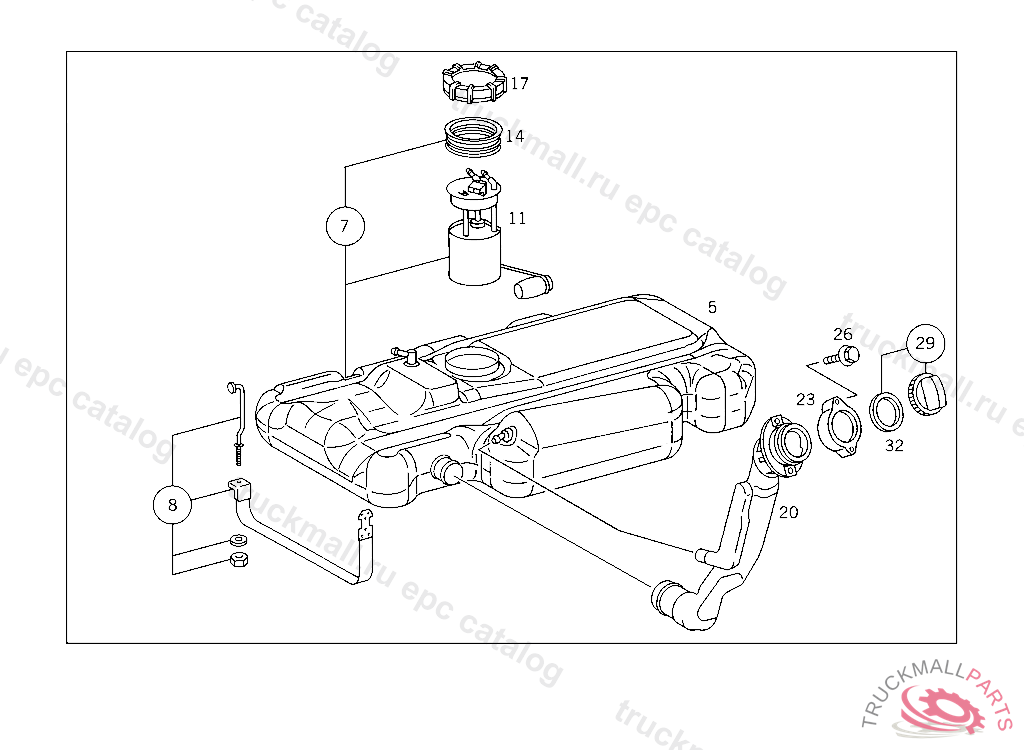

Поз.
Артикул
Описание
5
FUEL TANK , Replaced By: A9014711998
8
TENSIONING STRAP. STRAP FUEL TANK MOUNTING
11
SENDER UNIT DIESEL VEHICLES,USED WITHOUT AUXILIARY HEATER OM 602
14
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
17
NUT FUEL GAUGE SENDER UNIT TO FUEL TANK
20
FILLER NECK ,P 830165, Replaced By: A9014700720
20
FILLER NECK DIESEL VEHICLES, FILLER NECK MUST BE CONNECTED TO THE BODY SHELL WITH A GROUND LINE
23
FLANGE , P 830166 R 000001
26
TAPPING SCREW FILLER PIPE MOUNTING 6.3X38
29
FILLER CAP
32
SEAL RING
999
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
999
RIVET
999
LOOM TIE LINE MOUNTING
999
CABLE TIE IONIC EXCHANGER 380X7.8MM
999
FILLER CAP
999
FILLER NECK DIESEL VEHICLES
999
RETAINING STRAP
