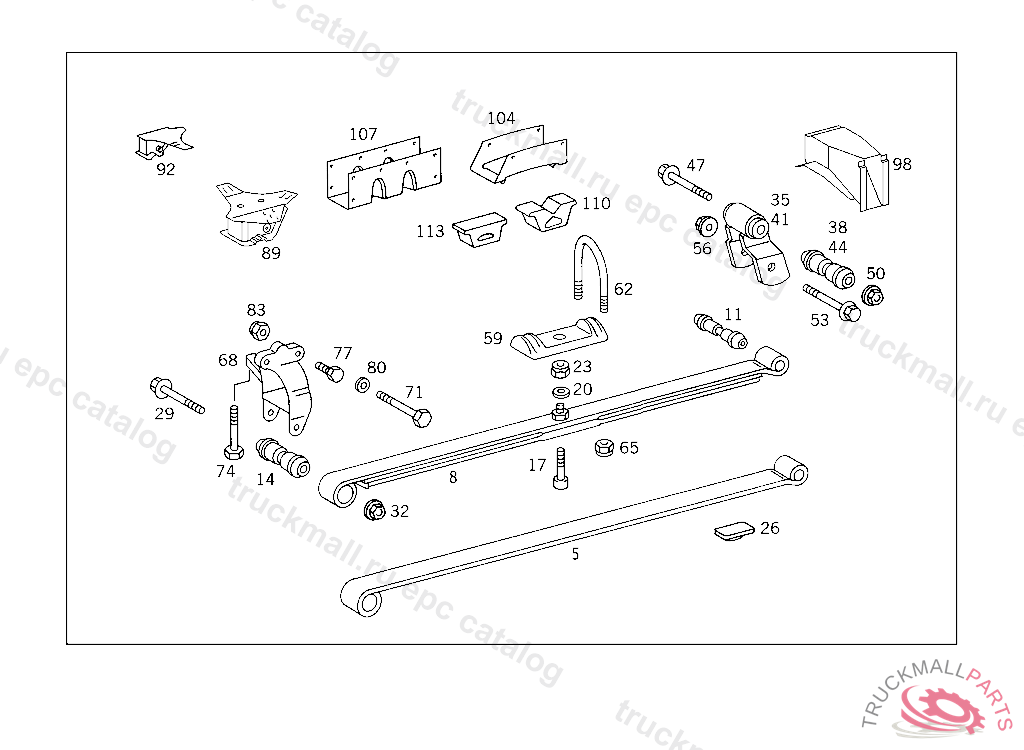

Поз.
Артикул
Описание
8
REAR SPRING , ONLY REPLACEABLE BY PAIRS
8
REAR SPRING , Replaced By: A9043201606
11
BUSHING
11
BUSHING36 MM
14
BUSHING36 MM
14
BUSHING
14
BUSHING
14
BUSHING
17
SPRING BOLT
20
WASHER RADIATOR TO RUBBER MOUNTING
23
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
26
RUBBER BUFFER
29
HEXAGON HEAD BOLT MOUNTING PARTS M 16X120
32
NUT BEARING BRACKET TO BRAKE ANCHOR
41
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET, ONLY REPLACEABLE BY PAIRS
41
SHACKLE , Replaced By: A9043200563
44
BUSHING
44
BUSHING
44
BUSHING
44
BUSHING36 MM
53
HEXAGON HEAD BOLT MOUNTING PARTS M 16X120
56
NUT BEARING BRACKET TO BRAKE ANCHOR
59
PLATE
62
CLAMP
65
COLLAR NUT F SHAFT AT CLAMP
89
SPRING BRACKET REAR SPRING LEFT FRONT BRACKET
92
SPRING BRACKET REAR SPRING RIGHT FRONT BRACKET
98
SPRING BRACKET REAR-SPRING REAR BRACKET
104
BRACKET SPRING STOP
107
TRUSS SPRING STOP
113
RUBBER BUFFER REAR SPRING TO REAR AXLE
