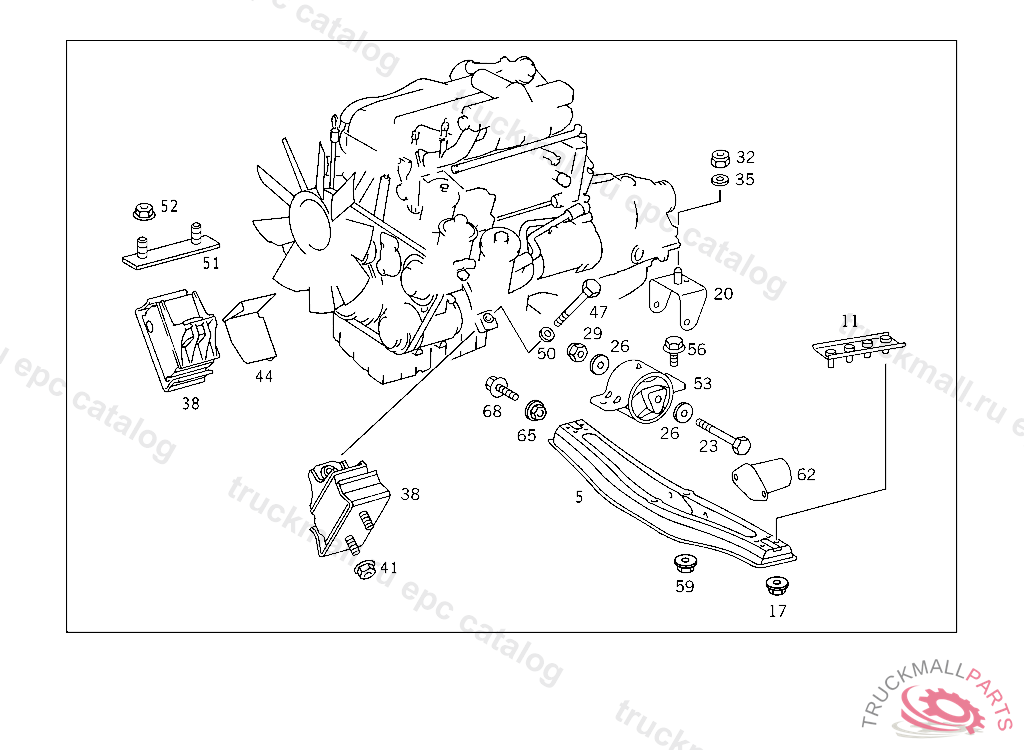

Поз.
Артикул
Описание
5
ENGINE SUPPORT REAR
11
MOUNTING PLATE RIGHT
11
MOUNTING PLATE LEFT
17
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
20
BRACKET ENGINE MOUNTING TO TRANSMISSION
23
SCREW BODY TO FRAME 10X120
26
WASHER , Replaced By: N009021010209
29
NUT STRAP TO BRACKET
32
HEXAGON NUT. NUT VIBRATION ABSORBER
35
WASHER , Replaced By: N000125013008
38
RUBBER MOUNTING FRONT LEFT AND RIGHT
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
SCREENING PLATE RIGHT FRONT RUBBER MOUNTING
47
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
50
WASHER , Replaced By: N000125013008
51
PLATE
52
NUT BRACKET TO FIRE WALL
53
RUBBER MOUNTING REAR
56
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
ENGINE VIBRATION ABSORBER ENGINE REAR SUPPORT
65
NUT HORN TO BRACKET M8
68
SCREW SPEED SENSOR TO REAR AXLE
68
SCREW , Replaced By: N910143008000
