Поз.
Артикул
Описание

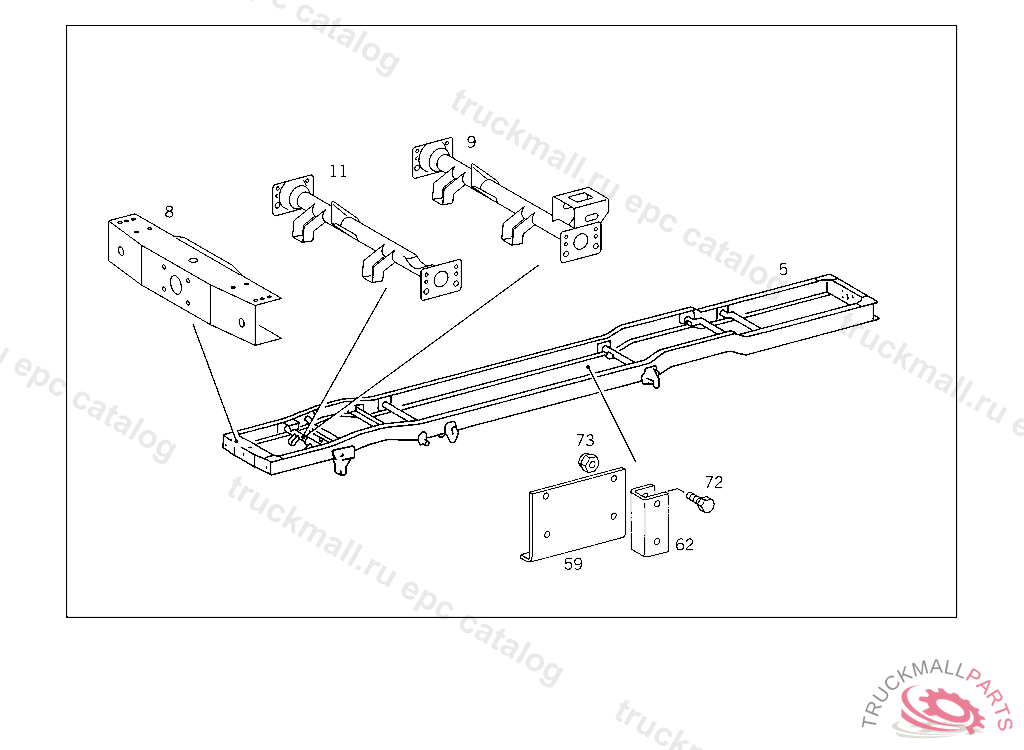

5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
5
FRAME
8
CROSS MEMBER (CROSS MEMBER) "1"
8
CROSS MEMBER (CROSS MEMBER) "1"
9
CROSS MEMBER"2"
9
CROSS MEMBER"2"
11
CROSS MEMBER"2"
11
CROSS MEMBER"2"
11
CROSS MEMBER"2"
11
CROSS MEMBER"2"
59
REINFORCEMENT INSIDE
59
REINFORCEMENT INSIDE
62
SPACER
72
SCREW BATTERY CASE TO SIDE MEMBER
72
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
72
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
72
SCREW , Replaced By: N308676014012
72
SCREW BRACKET TO SIDE MEMBER
73
NUT , Replaced By: N910113014000
73
NUT BRACKET TO BATTERY CASE
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO REAR CROSS MEMBER
999
SCREW ANGLE TO CROSS MEMBER M 10X30
999
WASHER BRACKET TO TRANSMISSION
999
BRACKET SPARE WHEEL MOUNTING
999
LEVER (CONTROL LEVER)
