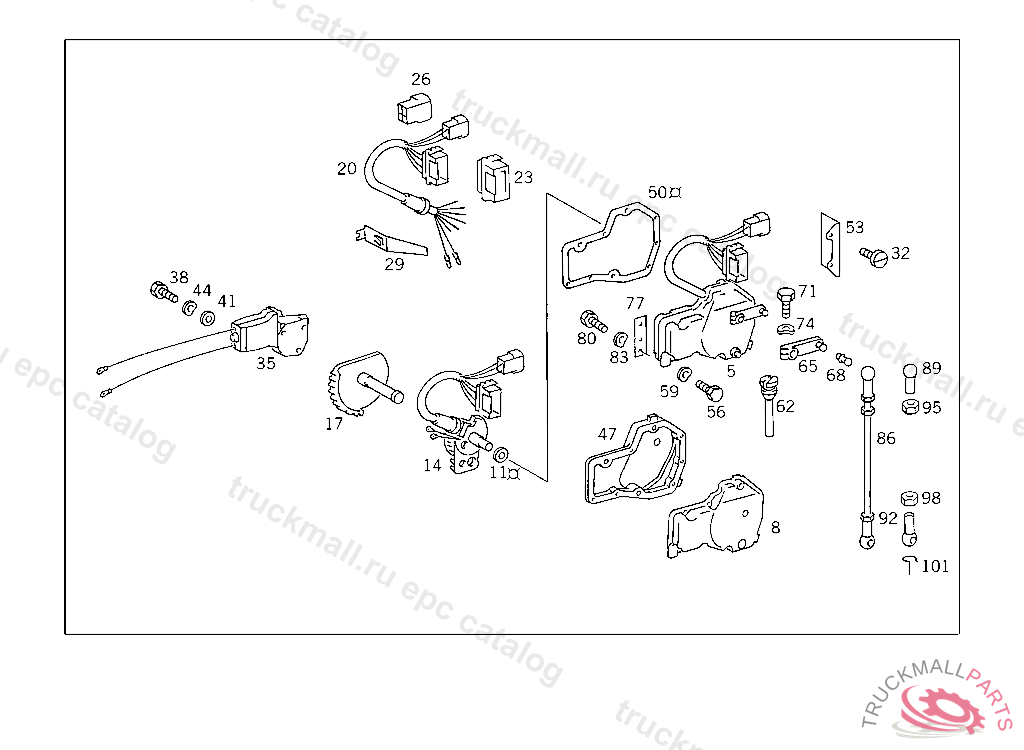

Поз.
Артикул
Описание
5
SWITCH RANGE SELECTOR
5
SWITCH , Replaced By: A3075400745
8
SHELL RANGE SELECTOR
11
SEAL RING RANGE SELECTOR SWITCH
14
SWITCH RANGE SELECTOR
14
SWITCH , Replaced By: A3055400145
17
SHAFT RANGE SELECTOR
20
CABLE HARNESS RANGE SELECTOR
23
PLUG HOUSING 8-POLE
26
PLUG HOUSING 4-POLE
29
BRACKET ELECTRIC CABLES
32
SCREW FUSE BOX TO SIDE MEMBER,5 097182
32
SCREW , Replaced By: N000000001933
32
SCREWR & S, M 4X8
35
MOTOR RANGE SELECTOR 24 V
38
SCREW LICENSE PLATE TO BRACKET
38
SCREW , Replaced By: N304017006016
38
SCREW , Replaced By: N304017006020
38
SCREW , Replaced By: A0009847929
38
SCREWROCKINGER,TYP 59 U150
38
SCREW PUMP TO BRACKET
41
WASHER , Replaced By: A0009940510
41
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
44
CONICAL SPRING WASHER COVERING
44
SPRING WASHER LICENSE PLATE TO BRACKET
47
CAP RANGE SELECTOR SWITCH
50
GASKET RANGE SELECTOR SWITCH
50
GASKET , Replaced By: A3055450280
53
BRACKET , Replaced By: A6155460343
53
BRACKET COVER TO CONVERTER HOUSING
56
SCREW CONNECTOR
59
SPRING WASHER LICENSE PLATE TO BRACKET
62
GROMMET GEAR SELECTOR HOUSING VENT
65
LEVER RANGE SELECTOR
68
BALL PIVOT
71
SCREW , Replaced By: N304017006020
71
SCREW LICENSE PLATE TO BRACKET
74
SPRING WASHER LICENSE PLATE TO BRACKET
77
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
77
BRACKET , Replaced By: A3604293140
80
SCREW REAR AXLE REGULATING SOLENOID VALVE
83
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
83
SPRING WASHER , Replaced By: N000137008212
86
ROD RANGE SELECTOR
89
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
92
BALL SOCKET L.H. THREAD
95
NUT BALL PIVOT TO LEVER
98
NUT L.H. THREAD
101
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
