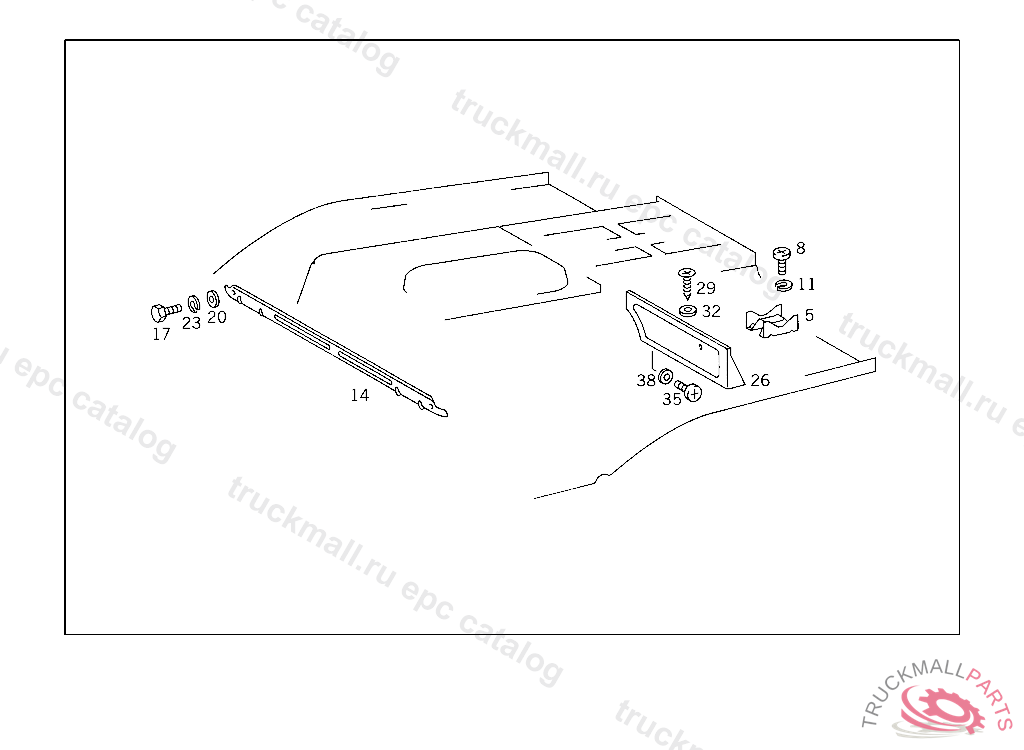

Поз.
Артикул
Описание
5
BRACKET LIFTING JACK
5
8
SCREW , Replaced By: N000000001146
8
SCREW CLAMP MOUNTING M 6X16
11
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
14
COVERING BEARING BRACKET
17
SCREW COVER PLATE TO BRACKET
20
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
WASHER COMPRESSED AIR LINE TO BRACKET
23
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
26
29
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
32
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
WASHER COMPRESSED AIR LINE TO BRACKET
35
SCREW BUSHING AND LEVER TO CAB
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER , Replaced By: N000125008443
