Поз.
Артикул
Описание

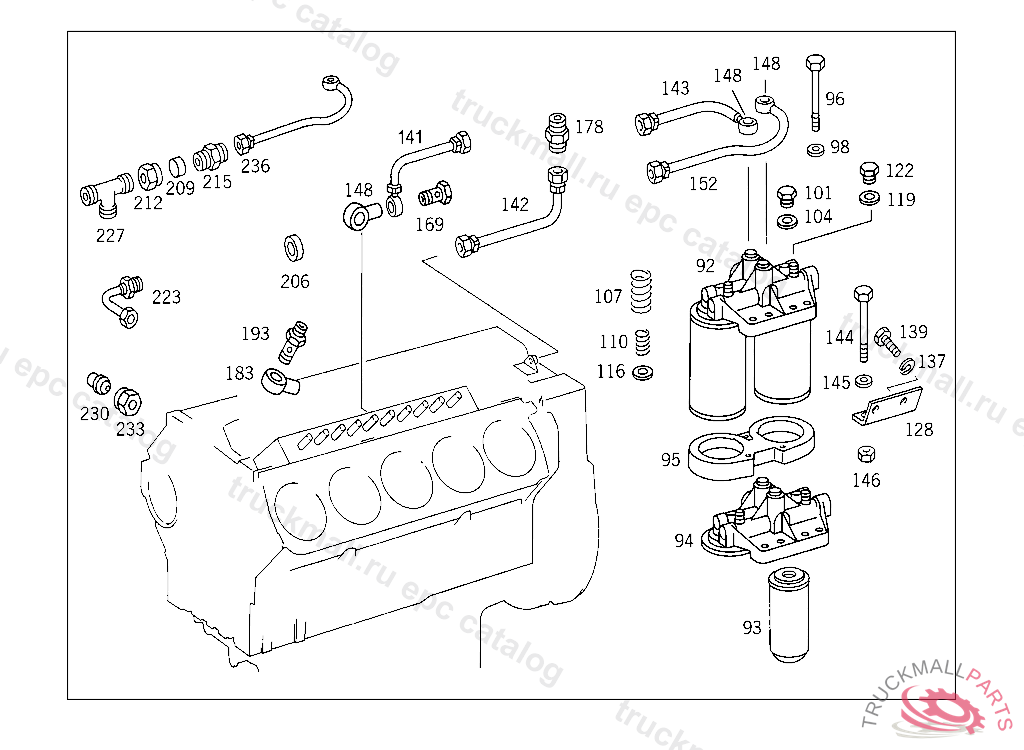

92
FILTER DOUBLE FUEL FILTER
93
FILTERTO 000 092 78 01, WITH METRIC THREAD 16 X 1.5
93
FILTERTO 000 092 93 01, WITH INCH THREAD R 3/8"
93
FILTER , Replaced By: A0010920201
94
FILTER HEAD
95
COVERINGTO 000 090 01 52
96
SCREW (BREATHER SCREW)
98
SEAL RING SCREW PLUG
101
SCREW PLUG FUEL TANK BREATHING M 14X1.5
101
SCREW PLUG BELL HOUSING
104
SEAL RINGTO 000 090 01 52
104
SEAL RINGTO 000 090 01 52
107
SPRING
110
HEADLESS SETSCREW
116
SEAL RINGBOSCH
119
SEAL RING INJECTION PUMP
122
SCREW PLUG FUEL TANK
122
SCREW PLUG , Replaced By: N007604014110
128
BRACKET DOUBLE FUEL FILTER
137
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
139
SCREW STRUT TO CROSS MEMBER M 10X25
139
SCREW , Replaced By: N304017010040
141
HOSE FROM FILTER TO INJECTION PUMP
142
HOSE
143
HOSE FROM FILTER TO INJECTION PUMP
144
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
145
LOCK WASHER FITTING TO BRACKET
146
NUT STRAP TO SUPPORT
148
BANJO UNION FUEL LINES AND BREATHING
152
HOSE FROM FILTER TO INJECTION PUMP
169
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
169
HOLLOW SCREW , Replaced By: N915047010100
178
FITTING DELIVERY LINE
183
BANJO UNION FUEL TANK-TO-FUEL-PUMP FUEL LINE
193
HOLLOW SCREW
206
RUBBER RING
209
DOUBLE TAPER RING LEAK LINE TO CYLINDER HEAD
212
UNION NUT (LEAK LINE),AT CYLINDER HEAD
215
FITTING , Replaced By: A0029975872
223
ELBOW FITTING
227
T-FITTING
230
SEAL CONE ,689884
233
UNION NUT
236
HOSE LEAK LINE TO CYLINDER HEAD
999
FILTER BOWLTO 001 092 19 01
999
FILTER ELEMENT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A3524700092
999
FILTER , Replaced By: A0000929301
999
FILTER , WITH INCH THREAD R 3/8", Replaced By: A0000900152
999
FELT TUBE ELEMENT. FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
OIL LINE
999
OIL LINE
999
LINE
999
HOSE FROM FILTER TO INJECTION PUMP
999
FITTING
