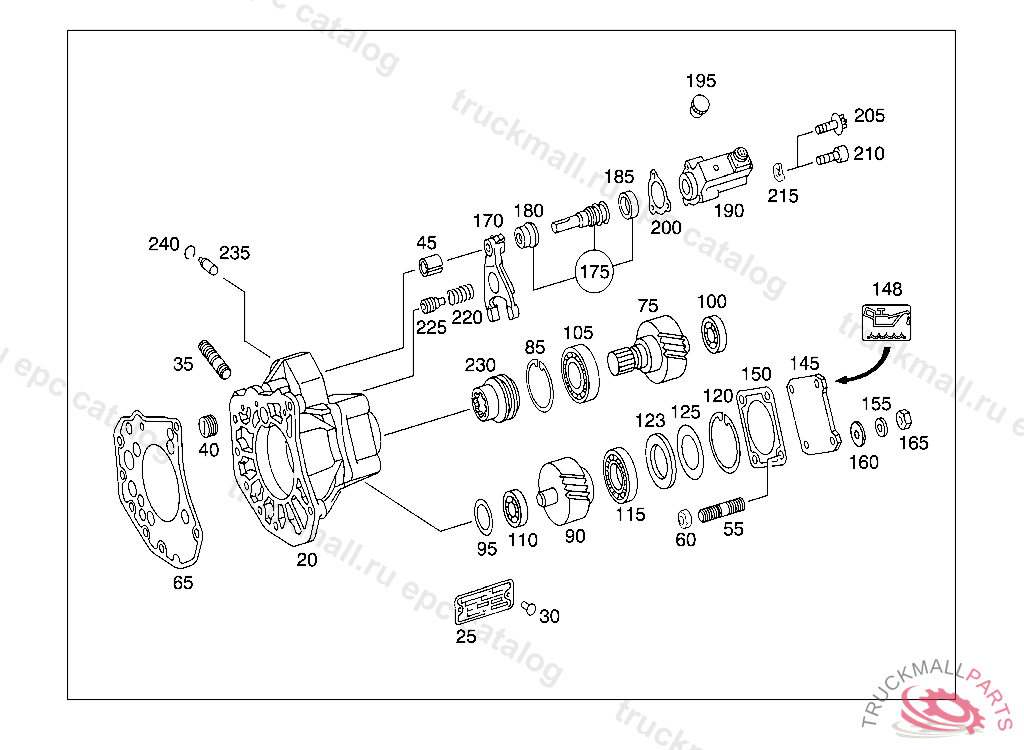

Поз.
Артикул
Описание
20
HOUSING P.T.O.
20
HOUSING P.T.O.
20
HOUSING P.T.O.
25
TYPE PLATE HOUSING,TOP
30
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
35
THREADED PIN TRANSMISSION CASE TO TRANSMISSION CASE
40
SCREW PLUG TRANSMISSION CASE TO TRANSMISSION CASE
45
BUSHING P.T.O. HOUSING
55
STUD COVER TO P.T.O. CASE M 12 X 54
60
NUT COVER TO FLANGE
65
GASKET P.T.O. TO TRANSMISSION
65
GASKET P.T.O. TO TRANSMISSION
75
GEAR HOUSING,TOP
75
GEAR HOUSING,TOP
85
LOCK RING DRIVE GEAR
85
LOCK RING HOUSING,INSIDE
90
DRIVE SHAFT P.T.O.
90
DRIVE SHAFT P.T.O.
95
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15 MM
95
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.50 MM
95
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM
95
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.30 MM
100
TAPERED ROLLER BEARING HOUSING,INSIDE
100
TAPERED ROLLER BEARING HOUSING,INSIDE
100
TAPERED ROLLER BEARING HOUSING,INSIDE
100
TAPERED ROLLER BEARING HOUSING,INSIDE
100
TAPERED ROLLER BEARING HOUSING,INSIDE
100
TAPERED ROLLER BEARING HOUSING,INSIDE
105
TAPERED ROLLER BEARING CASE,REAR
105
TAPERED ROLLER BEARING CASE,REAR
105
TAPERED ROLLER BEARING CASE,REAR
105
TAPERED ROLLER BEARING CASE,REAR
110
TAPERED ROLLER BEARING DRIVE SHAFT
110
TAPERED ROLLER BEARING DRIVE SHAFT
110
TAPERED ROLLER BEARING DRIVE SHAFT
110
TAPERED ROLLER BEARING DRIVE SHAFT
115
TAPERED ROLLER BEARING DRIVE SHAFT
115
TAPERED ROLLER BEARING DRIVE SHAFT
115
TAPERED ROLLER BEARING DRIVE SHAFT
115
TAPERED ROLLER BEARING DRIVE SHAFT
120
LOCK RING DRIVE GEAR
120
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
123
SPACER RING DRIVE SHAFT
125
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.20 MM
125
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM
125
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15 MM
125
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.50 MM
145
COVER TO PLUG HYDRAULIC PUMP CONNECTION OPENING
145
COVER P.T.O. FLANGE
148
DECALCOMANIA TO PLUG HYDRAULIC PUMP CONNECTION OPENING
150
GASKET , Replaced By: A3892640780
150
GASKET COVER TO FLANGE
155
WASHER COVER TO P.T.O. CASE
160
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
165
NUT COVER TO FLANGE
170
SHIFTING FORK P.T.O. CONTROL
175
PISTON P.T.O. CONTROL
180
SEAL RING PISTON
185
SEAL RING PISTON
190
CYLINDER (SHIFTING CYLINDER)
190
CYLINDER (SHIFTING CYLINDER), Replaced By: A9452643527, +001A0049905171, +001A0009940647, +001A0009945348, +001A0009973634
190
CYLINDER (SHIFTING CYLINDER)
195
PLUG TO PLUG HYDRAULIC LINE
200
GASKET SHIFTING CYLINDER TO CASE
205
SCREW SHIFTING CYLINDER TO CASE M8X55
210
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X50
215
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
220
SPRING SLIDING COLLAR
225
SCREW PLUG TRANSMISSION CASE TO TRANSMISSION CASE
230
SLIDING COLLAR P.T.O. CONTROL
230
SHIFTING DOG P.T.O. CONTROL
235
DOWEL PIN P.T.O. CONTROL
240
SNAP RING P.T.O. INDICATOR ACTUATION
