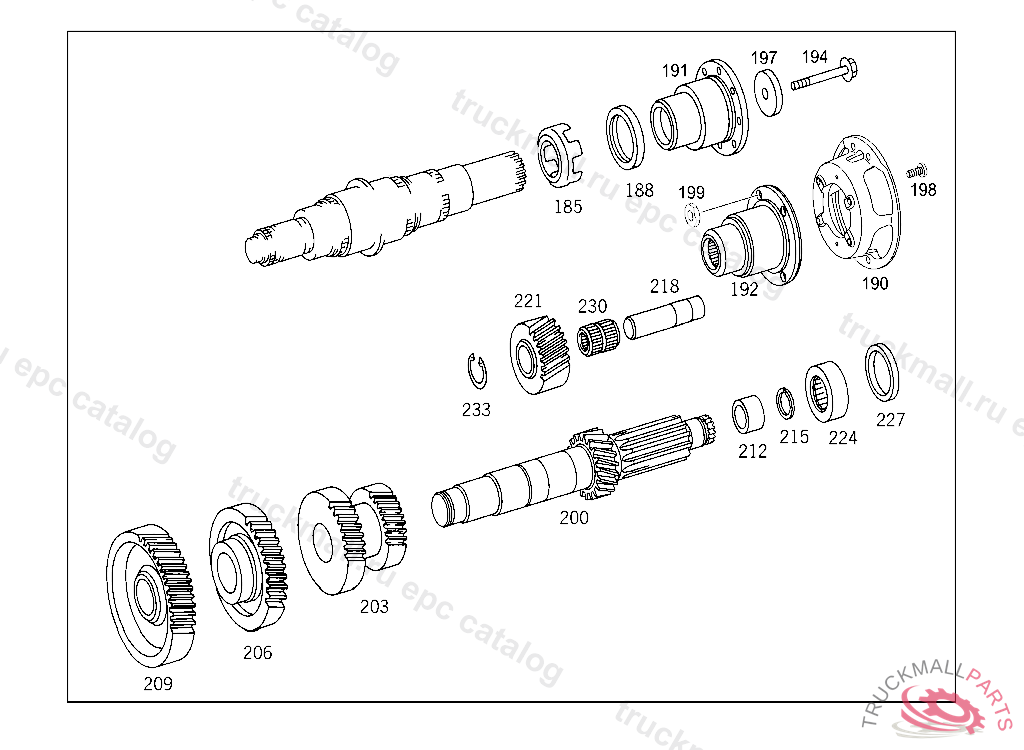

Поз.
Артикул
Описание
185
PULSE STAR (PULSE PLATE),P.T.O.SHAFT SPEED
188
SEAL RING MAIN SHAFT,REAR
188
SEAL RING MAIN SHAFT,REAR
188
SEAL RING , Replaced By: A0249972747
188
SEAL RING , Replaced By: A0249972747
188
SEAL RING MAIN SHAFT,REAR
188
SEAL RING MAIN SHAFT,REAR
188
SEAL RING MAIN SHAFT,REAR
190
INTERMEDIATE FLANGE (COUPLING FLANGE)
190
INTERMEDIATE FLANGE (COUPLING FLANGE)
191
FLANGE (COUPLING FLANGE)
191
FLANGE (COUPLING FLANGE)
192
COUPLING FLANGE (COUPLING FLANGE)
192
FLANGE (COUPLING FLANGE)
192
FLANGE (COUPLING FLANGE)
192
COUPLING FLANGE (COUPLING FLANGE)
192
FLANGE (COUPLING FLANGE)
192
FLANGE (COUPLING FLANGE)
192
FLANGE (COUPLING FLANGE)
192
FLANGE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9702621045
192
FLANGE , Replaced By: A9702621045, +001A0249970447
194
HEXAGON HEAD BOLT COUPLING FLANGE TO DRIVE SHAFT M16X1.5X60
194
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
197
THRUST WASHER COUPLING FLANGE TO DRIVE SHAFT
197
THRUST WASHER FOLLOWER FLANGE TO PROPELLER SHAFT
198
STUD BOLT PROPELLER SHAFT TO COUPLING FLANGE
198
STUD BOLT PROPELLER SHAFT TO COUPLING FLANGE
198
HEXALOBULAR BOLT EXPANSION TANK M8X20
199
NUT PROPELLER SHAFT TO REAR AXLES I AND II
199
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
200
COUNTERSHAFT , NOT VALID IN LATIN AMERICA TO BE ORDERED ONLY FROM DB-AG
200
COUNTERSHAFT , Replaced By: A9702630602
200
COUNTERSHAFT
200
COUNTERSHAFT
203
GEAR 3RD AND 4TH SPEED
203
GEAR 3RD AND 4TH SPEED Z38 / Z33, NOT VALID IN LATIN AMERICA TO BE ORDERED ONLY FROM DB-AG
203
GEAR 3RD AND 4TH SPEED Z38 / Z33
206
GEAR 5TH SPEED, NOT VALID IN LATIN AMERICA TO BE ORDERED ONLY FROM DB-AG
206
GEAR 5TH SPEED
206
GEAR 5TH SPEED
209
GEAR CONSTANT, COUNTERSHAFT, NOT VALID IN LATIN AMERICA TO BE ORDERED ONLY FROM DB-AG
209
GEAR CONSTANT, COUNTERSHAFT
212
INNER RING COUNTERSHAFT,REAR
215
SNAP RING COUNTERSHAFT,REAR
218
REVERSE IDLER SHAFT
218
REVERSE IDLER SHAFT , Replaced By: A6942630030
221
REVERSE IDLER GEAR , Replaced By: A9702630231
221
REVERSE IDLER GEAR , NOT VALID IN LATIN AMERICA TO BE ORDERED ONLY FROM DB-AG, Replaced By: A9702630331
221
REVERSE IDLER GEAR
224
CYLINDR. ROLLER BEARING COUNTERSHAFT,REAR
224
ROLLER ASSEMBLY COUNTERSHAFT,REAR
224
CYLINDRICAL BEARING COUNTERSHAFT,REAR
224
ROLLER ASSEMBLY , Replaced By: A0029817512, +001A0029817112
227
BUSHING COUNTERSHAFT,REAR
230
NEEDLE BEARING REVERSE IDLER GEAR
230
NEEDLE BEARING REVERSE IDLER GEAR
230
NEEDLE BEARING REVERSE IDLER GEAR
233
RETAINING RING REVERSE SLIDING GEAR 32X1.5
