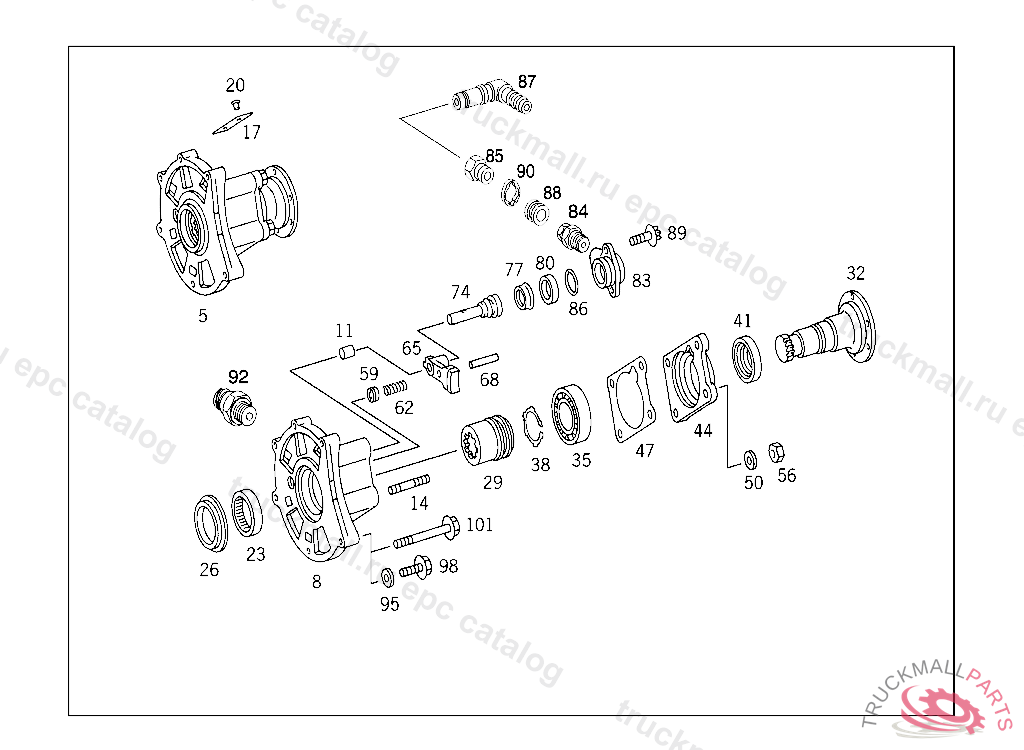

Поз.
Артикул
Описание
5
P.T.O.NA 60-1B, DETERMINE VARIANT NUMBER FROM VEDOC
5
POWER TAKE-OFF , DETERMINE VARIANT NUMBER FROM VEDOC
5
P.T.O.NA 60-1C, DETERMINE VARIANT NUMBER FROM VEDOC
5
P.T.O. , Replaced By: XVV65040013
8
HOUSING P.T.O.
11
BUSHING P.T.O. HOUSING
14
STUD , Replaced By: A3899900805
14
SCREW COVER TO P.T.O. CASE M 12X45
17
TYPE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9455840301
17
TYPE PLATE HOUSING,TOP
20
RIVET UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE
23
NEEDLE BEARING , Replaced By: A0019810010
23
NEEDLE BEARING DRIVE SHAFT
26
RING HOUSING,FRONT
29
SLIDING COLLAR DRIVE SHAFT,FRONT
29
SLIDING COLLAR P.T.O. CONTROL
32
DRIVE SHAFT DRIVE SHAFT
35
BALL BEARING DRIVE SHAFT,183596
35
BALL BEARING DRIVE SHAFT,183596
35
BALL BEARING , Replaced By: A0089814225
35
BALL BEARING , Replaced By: A0019811525
35
BALL BEARING , Replaced By: A0029812325
38
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
38
LOCK RING DRIVE SHAFT, Replaced By: N000471040002
41
SEAL RING OUTPUT FLANGE,BOTTOM
44
COVER REAR P.T.O.
47
GASKET COVER TO P.T.O. CASE
47
GASKET COVER TO FLANGE
47
GASKET , Replaced By: A9702640180
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
WASHER
50
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
50
WASHER SUPPORT TO FRAME,D 127794
56
NUT SPRING BOLT
56
HEXAGON NUT W FLANGE COVER TO P.T.O. CASE M12
56
NUT COVER TO FLANGE
59
BUSHING P.T.O. CONTROL
62
SPRING P.T.O. CONTROL
65
SHIFTING FORK P.T.O. CONTROL
68
CYLINDRICAL PIN SHIFT CASE,402699
74
SHIFTING ROD P.T.O. CONTROL,253355
74
SHIFTING ROD ,253354, Replaced By: A9702640425, +001A0002641960, +001A0149974847
77
SEAL RING FRONT
80
RING REAR
80
SEAL RING PISTON
83
CYLINDER (SHIFTING CYLINDER),369692
83
CYLINDER ,369691, Replaced By: A9702640227, +001A0049905171, +001A0009940647, +001A0009945348, +001A0009973634
84
FITTING SHIFTING CYLINDER
85
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
85
UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
86
SEAL RING CONNECTOR
87
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, 4 MM
88
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
89
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X20
89
SCREW , Replaced By: N000000000761
90
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
92
TAPPET SWITCH ADDITIONAL GEARBOX M20X1.5
92
SWITCH BACK-UP LIGHT M20X1,5
92
SWITCH , Replaced By: A0015452909
92
SWITCH , Replaced By: A0015454709
92
SWITCH ADDITIONAL GEARBOX, Replaced By: A0015457409
92
SWITCH BACK-UP LIGHT M20X1.5
95
WASHER RADIATOR TO RUBBER MOUNTING
98
SCREW PLATE TO FRAME M 10X45
98
SCREW CONSOLE TO FRAME M 10X45 MM
101
SCREW P.T.O. TO TRANSMISSION M10 X 100
999
SEAL RING. REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
999
DECALCOMANIA TO PLUG HYDRAULIC PUMP CONNECTION OPENING
999
COVER REAR P.T.O.
