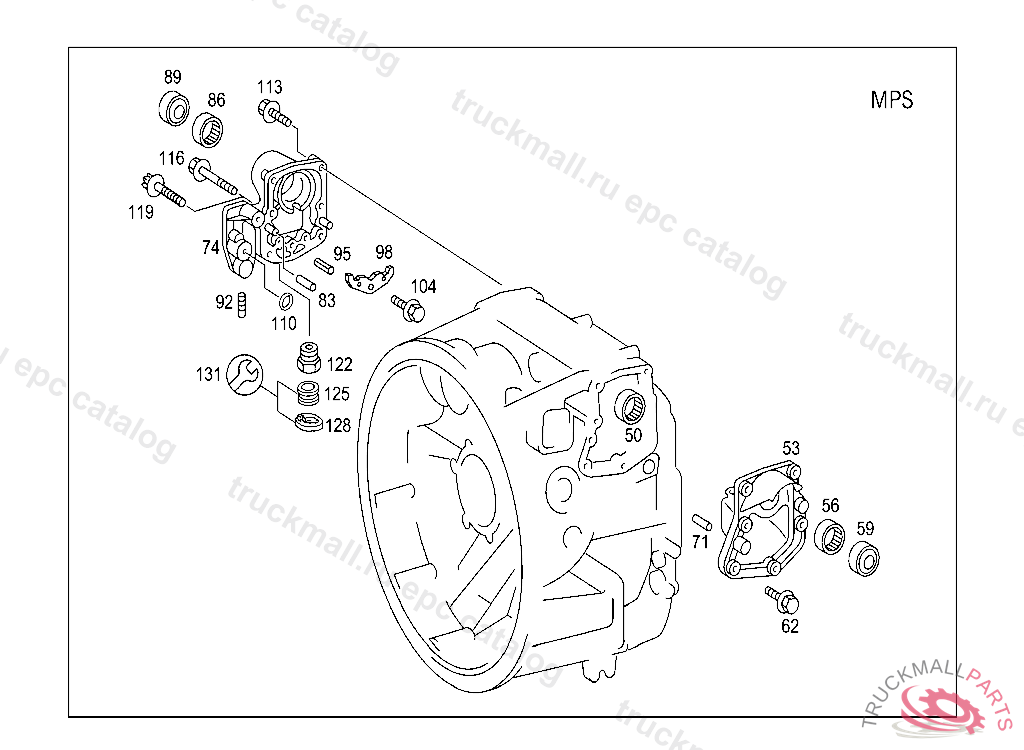

Поз.
Артикул
Описание
50
NEEDLE BEARING BEARING COVER
50
NEEDLE BEARING , Replaced By: A0099810510
50
NEEDLE BEARING , Replaced By: A0099810510
53
BEARING COVER LEFT
56
NEEDLE BEARING BEARING COVER
56
NEEDLE BEARING BEARING COVER
56
NEEDLE BEARING , Replaced By: A0189816110
56
NEEDLE BEARING , Replaced By: A0189816110
59
SEAL RING BEARING COVER
59
SEAL RING BEARING COVER
62
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
62
SCREW SHIFT LEVER TO BRACKET M8X30
62
SCREW BEARING COVER TO TRANSMISSION CASE
71
CYLINDRICAL PIN
74
TRANSMISSION CASE COVER RIGHT OUTSIDE
74
BEARING COVER RIGHT OUTSIDE
74
TRANSMISSION CASE COVER RIGHT OUTSIDE
74
BEARING COVER RIGHT OUTSIDE, Replaced By: A9452602113
74
BEARING COVER , Replaced By: A9452683834, +001A0039902971, +001A0009940647, +001A0009945348, +001A0009973634
74
BEARING COVER
74
BEARING COVER , Replaced By: A9452683334, +001A0039902971, +001A0009940647, +001A0009945348, +001A0009973634
83
CYLINDRICAL PIN
86
NEEDLE BEARING BEARING COVER,INSIDE
86
NEEDLE BEARING INSIDE AND OUTSIDE
86
NEEDLE BEARING BEARING COVER,INSIDE
86
NEEDLE BEARING , Replaced By: A0219814710
86
NEEDLE BEARING INSIDE AND OUTSIDE
89
SEAL RING BEARING COVER TO TRANSMISSION CASE
89
SEAL RING BEARING COVER TO TRANSMISSION CASE
89
SEAL RING BEARING COVER TO TRANSMISSION CASE
92
THREADED PIN TRANSMISSION CASE TO TRANSMISSION CASE
92
THREADED PIN , Replaced By: A0009904677
95
CLAMPING PIN SHIFTING SEGMENT
98
SHIFTING SEGMENT GEAR INTERLOCK
98
SHIFTING SEGMENT BEARING COVER
98
SHIFTING SEGMENT , Replaced By: A9452680446
98
DETENT , Replaced By: A9452680746
104
SCREW , Replaced By: N910143008002
104
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
104
SCREW BRACKET TO CROSS CONNECTION STRUT
104
SCREW GUIDE TO TRANSMISSION
110
SEAL RING VALVE TO SHIFTER COVER
113
SCREW CLAMP ON BRACKET
113
SCREW BRACKET TO FRAME M 8X35
113
SCREW , Replaced By: A0019904204
113
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X35
116
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
119
HEXALOBULAR BOLT BRACKET TO BRACKET
119
SCREW , Replaced By: A0019905104
119
SCREW , Replaced By: N910143008010
119
SCREW , Replaced By: N910105008043
122
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
122
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
125
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
125
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
128
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
128
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
131
SEAL RING. REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
131
REPAIR KIT , Replaced By: A0309971648
