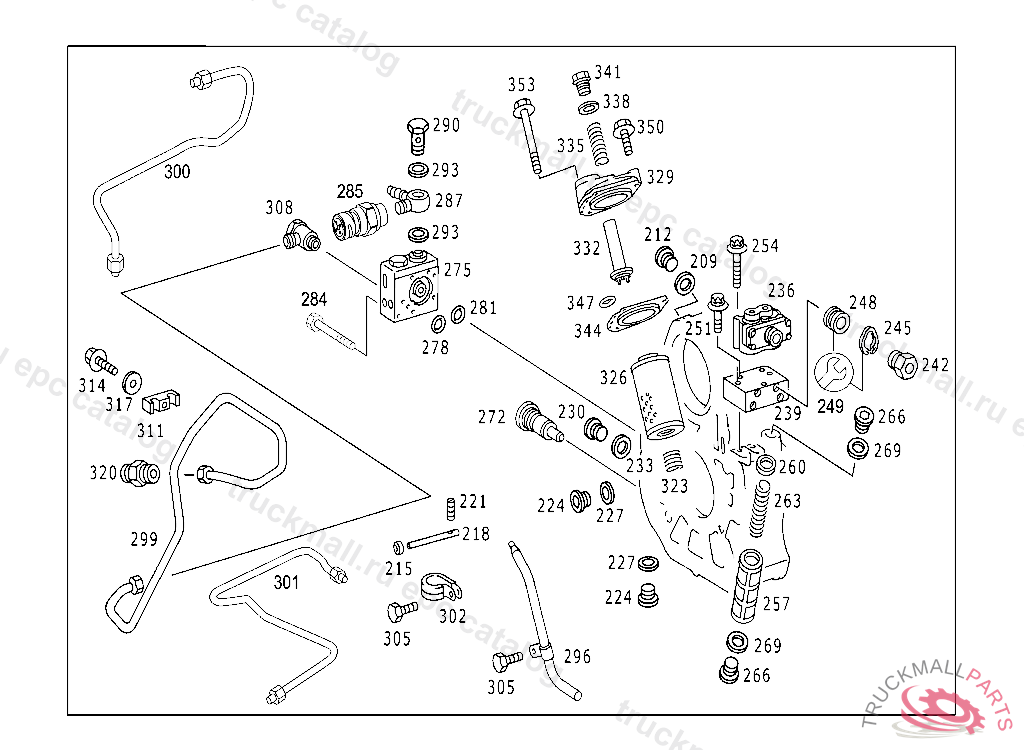

Поз.
Артикул
Описание
209
SEAL RING OIL FILLING AND OIL DRAIN
212
SCREW PLUG TOP LEFT AND RIGHT
215
PIN INTAKE PIPE
218
OIL PIPE P.T.O. HOUSING
221
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
221
HEADLESS SETSCREW , Replaced By: N000417006001
224
SCREW PLUG, FILLING HOUSING,BOTTOM
227
SEAL RINGTO 001 431 72 14
230
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
233
SEAL RING
236
VALVE DOUBLE 3/2-WAY
236
VALVE (SHIFTING CYLINDER)
239
INTERMEDIATE FLANGE VALVE
242
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
245
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
248
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
249
SEAL RING. REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
251
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X45
254
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
257
STRAINER (OIL STRAINER)
257
STRAINER FILTER
257
STRAINER FILTER
260
BUSHING OIL STRAINER
263
SPRING OIL STRAINER
266
SCREW PLUG CASE,LEFT
269
SEAL RING OIL RETURN
272
VALVE CONTROL VALVE
275
VALVE , Replaced By: A0002642189
275
VALVE (PRESSURE CONTROL VALVE)
278
SEAL RING VALVE TO HOUSING
281
SEAL RING COVER TO P.T.O. CASE
284
SCREW , Replaced By: N304014008001
284
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
284
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
285
SWITCH (PRESSURE SENSOR) EHZ
287
BANJO UNION PRESSURE REGULATOR VALVE
290
HOLLOW SCREW LINE CONNECTION
293
SEAL RING PNEUMATIC VALVE
296
PIPE PRESSURE REGULATOR VALVE
299
PIPE , Replaced By: A9452601385
299
PIPE P.T.O. HOUSING TO BELL HOUSING
300
PIPE P.T.O. HOUSING
301
PIPE P.T.O. HOUSING
302
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
302
CLAMP ,K 147121, Replaced By: N000000000319
305
SCREW CLAMP MOUNTING M6 X 16
308
FITTING OIL LINE TO CASE
308
SCREW CONNECTION DELIVERY LINE TO PUMP
311
CLAMPING PIECE LINE MOUNTING 42 MM
311
CLAMPING PIECE OIL LINE TO CASE
314
HEXALOBULAR BOLT OIL LINE TO CASE M6X20
314
SCREW BRACKET TO FRAME M 8X35
314
HEXALOBULAR BOLT TRANSMISSION CASE COVER TO TRANSMISSION CASE M8X35
317
WASHER EXHAUST MUFFLER TO STRAP
320
FITTING DELIVERY LINE TO PUMP
323
SPRING FILTER
326
STRAINER FILTER
329
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 257685, Replaced By: A9452640511
329
COVER FILTER
332
VALVE FILTER
335
SPRING
338
SEAL RING LOCKING VALVE 20X24
341
SCREW FILTER
344
GASKET COVER TO P.T.O. CASE
347
SEAL RING COVER TO P.T.O. CASE
350
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
350
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
353
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
353
SCREW 3/2-WAY VALVE TO BRACKET
