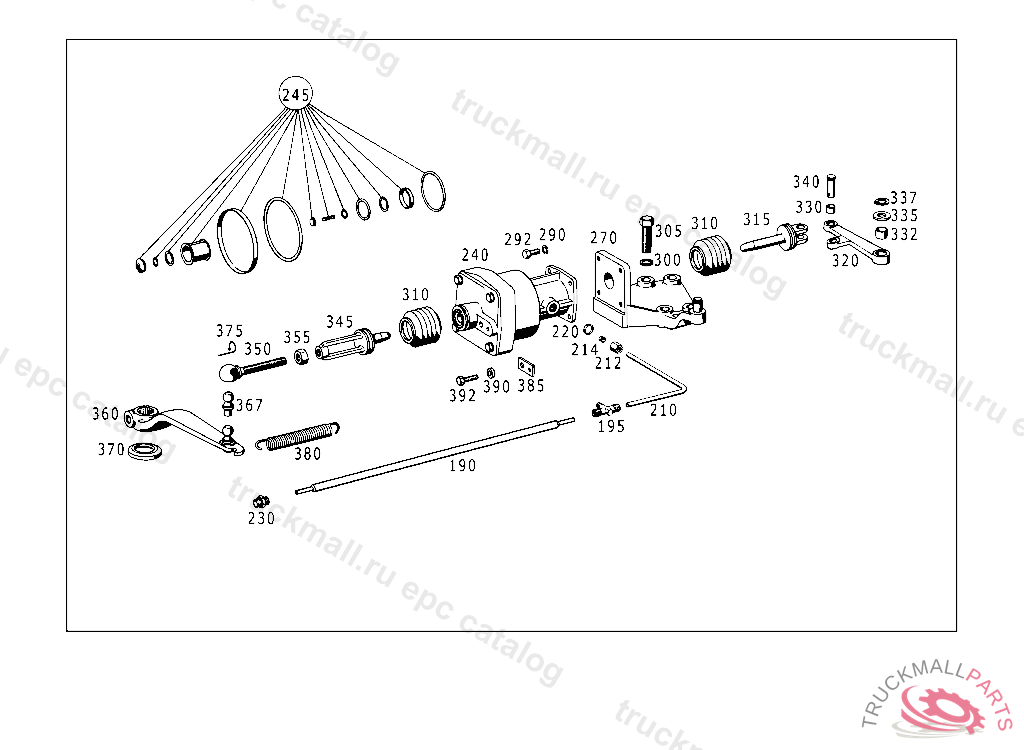

Поз.
Артикул
Описание
190
HOSE TRISTOP CYLINDER,4 412125
195
T-FITTING FITTING,5 461950
210
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
212
UNION NUT LINE CONNECTION
214
GLAND LINE CONNECTION
220
SEAL RING FROM FUEL TANK TO FUEL TANK
230
FITTING
240
MASTER CYLINDER (CLUTCH BOOSTER)
245
REPAIR KIT MASTER CYLINDER
270
BEARING MASTER CYLINDER
270
BEARING BRACKET , Replaced By: A3632900431, +001A3632900434
290
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
292
SCREW , Replaced By: N304017008034
292
SCREW BRACKET TO CROSS CONNECTION STRUT
300
LOCK WASHERROCKINGER TYP 59 G140,59 G150
305
SCREW CONSOLE TO SIDE MEMBER M 16X1.5X48
310
BOOT
315
END PIECE
320
LEVER (REVERSING LEVER)
320
LEVER , Replaced By: A3632900434, +001A3632900431
330
BUSHING (REVERSING LEVER)
332
BUSHING CABLE GUIDE
335
WASHER LEVER TO CONSOLE
337
LOCK STOP TO BEARING BRACKET
337
LOCK RING , Replaced By: A0079942041
340
PIN SHIFTING ROD TO TRANSMISSION
345
INTERMEDIATE PIECE RELEASE COLLAR
350
BALL SOCKET RELEASE COLLAR
355
NUT SPARE WHEEL CARRIER
360
RELEASE LEVER , 841163
360
RELEASE LEVER
367
BALL PIVOT RELEASE PARTS
370
WASHER LEVER TO RELEASE SHAFT, WITH L.H.D.FROM IDENT NO. 602167,WITH R.H.D.FROM IDENT NO. 601938
375
SECURING CLIP , Replaced By: N073130019300
375
SNAP RING CLUTCH SLAVE CYLINDER
380
SPRING (RELEASE SPRING), ON L FROM IDENT NO. 008464 ALSO INSTALLED ON 008448-008455
385
BRACKET , Replaced By: A3632950040
385
BRACKET COMPRESSED AIR LINE
390
SPACER RING CLUTCH BOOSTER
392
SCREW , Replaced By: N304017008027
392
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
BOOT
999
SHACKLE , Replaced By: A0019978390
999
YOKE PULL ROD TO LEVER
999
LOOM TIE LINE MOUNTING 280 MM
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
BEARING
999
CABLE BRAKE
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINROCKINGER TYP 260 G140
999
WASHER
999
SCREW , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017010002
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032010002
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT
999
SCREW CONSOLE TO SIDE MEMBER
999
PIN CABLE
999
SCREW FLEXIBLE SHAFT TO CAB FIRE WALL,4 895682
999
WASHER AIR INTAKE CASE AND SUPPORT TO MOUNTING RAIL, 345.200 FROM CHASSIS 483437604173
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
YOKE , Replaced By: A0009961501
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
