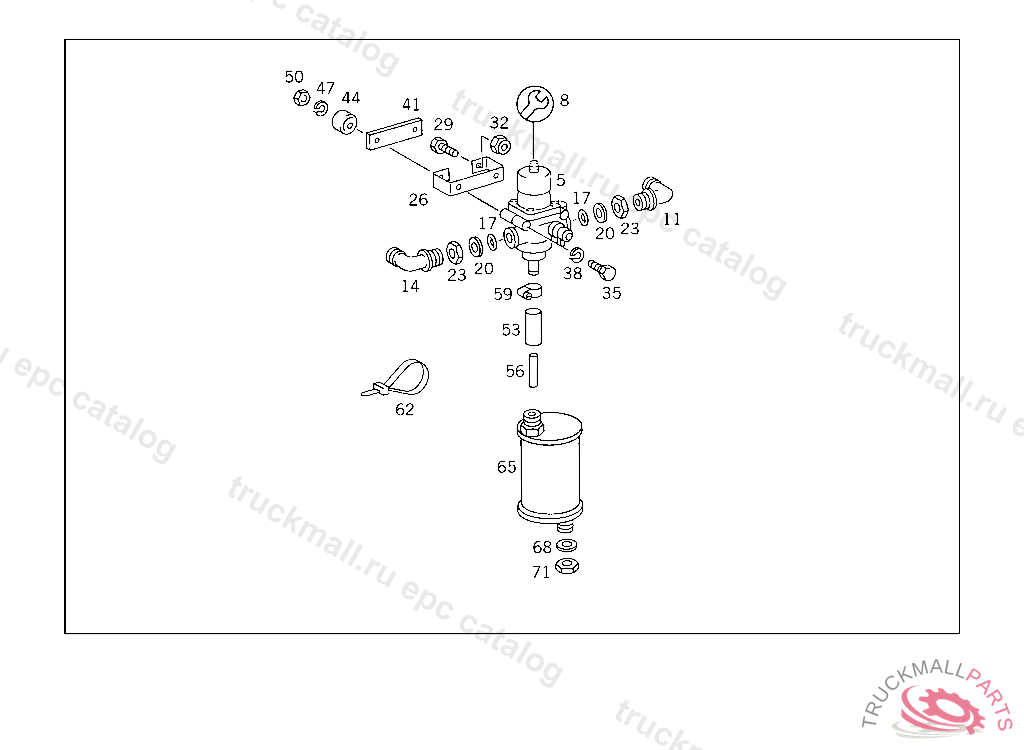

Поз.
Артикул
Описание
5
PRESSURE REGULATOR , Replaced By: A0024314906
5
PRESSURE REGULATOR , Replaced By: A0024318306
8
REPAIR KIT , Replaced By: A0004301107
8
REPAIR KITTO 001 431 12 06, KNORR 3200
11
ELBOW FITTING AIR RESERVOIR
14
FITTING , Replaced By: A0009907771
14
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
17
O-RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
23
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
35
SCREW PRESSURE REGULATOR TO RUBBER BUFFER M 8X70
38
LOCK WASHER RAIL TO BATTERY SUPPORT
41
SHIM PRESSURE REGULATOR TO RUBBER BUFFER
44
RUBBER BUFFER AT PRESSURE REGULATOR
47
LOCK WASHER RAIL TO BATTERY SUPPORT
50
NUT , Replaced By: N304032008006
56
62
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
