Поз.
Артикул
Описание
6

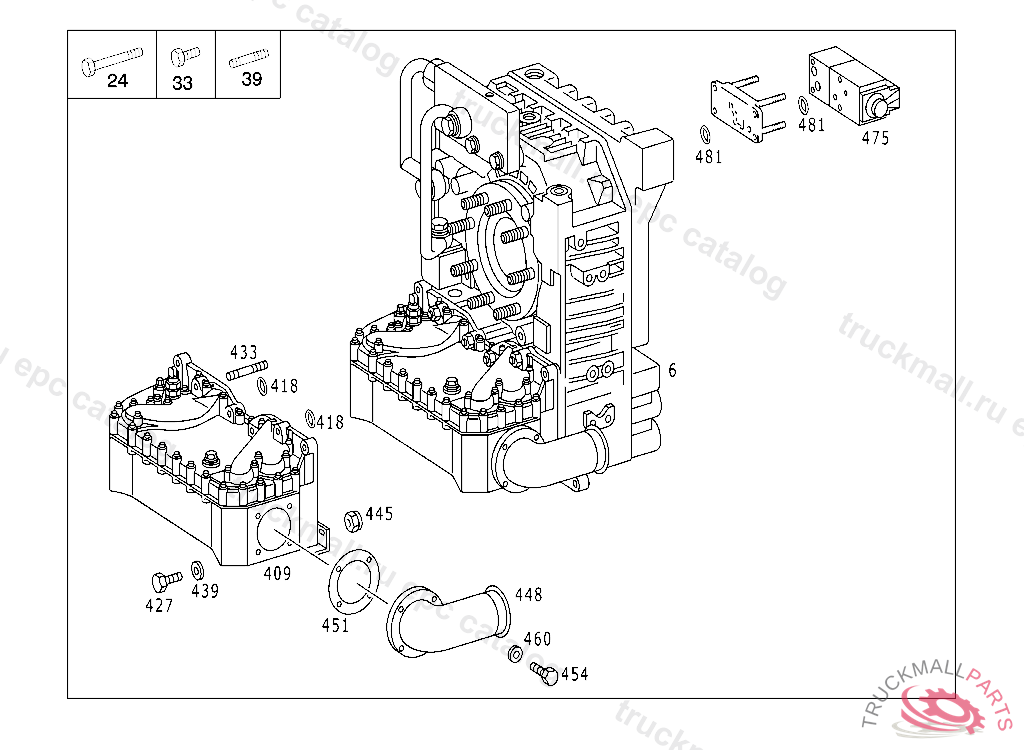

HYDRAULIC BRAKE RETARDER "VOITH"
6
HYDRAULIC BRAKE RETARDER VOITH 133
6
HYDRAULIC BRAKE RETARDER "VOITH", Replaced By: A6644300195
6
HYDRAULIC BRAKE RETARDER "VOITH"
24
SCREWM12X165
24
SCREW
33
SCREW
39
THREADED PINM5X5
409
OIL COOLER
409
RADIATOR
418
SEAL RING RADIATOR 36X4 MM
427
SCREW BRACKET TO RETARDER
433
STUD RADIATOR MOUNTING M10X50
433
STUD
439
WASHER RADIATOR TO RUBBER MOUNTING
445
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
448
CONNECTOR RETARDER COOLING WATER FEED
448
CONNECTOR RETARDER COOLING WATER RETURN
451
GASKET PIPE
454
SCREW CROSS MEMBER TO SIDE MEMBERS
460
WASHER RADIATOR TO RUBBER MOUNTING
475
VALVE
481
SEAL RING VALVE 10X2 MM
999
SCREW
999
CLAMP LINE MOUNTING
999
LOCK
999
999
WASHER
999
SENDER UNIT
999
999
999
999
LINE
999
999
999
SCREW
999
LINE
999
HOLLOW SHAFT
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 511 MM, APPLICABLE TO TRANSMISSION 718.745
999
999
SCREWM 16X16X20X45
999
LOCKING CAP , Replaced By: A3845067233
999
SNAP RING
999
SPACER RING
999
CONTROL UNIT
999
999
RET ELECTRONICS
999
SCREW
999
SCREW
999
VALVE
999
HYDRAULIC CLUTCH
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 590 MM, APPLICABLE TO TRANSMISSION 718.630
999
RUBBER MOUNTING , Replaced By: A3452407017
999
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 585 MM,C 069616
999
CLAMP FEED LINE TO THERMOSTAT
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
BRACKET PEDAL BEARING BRACKET
999
999
999
999
ELBOW FITTING
999
999
999
999
999
999
