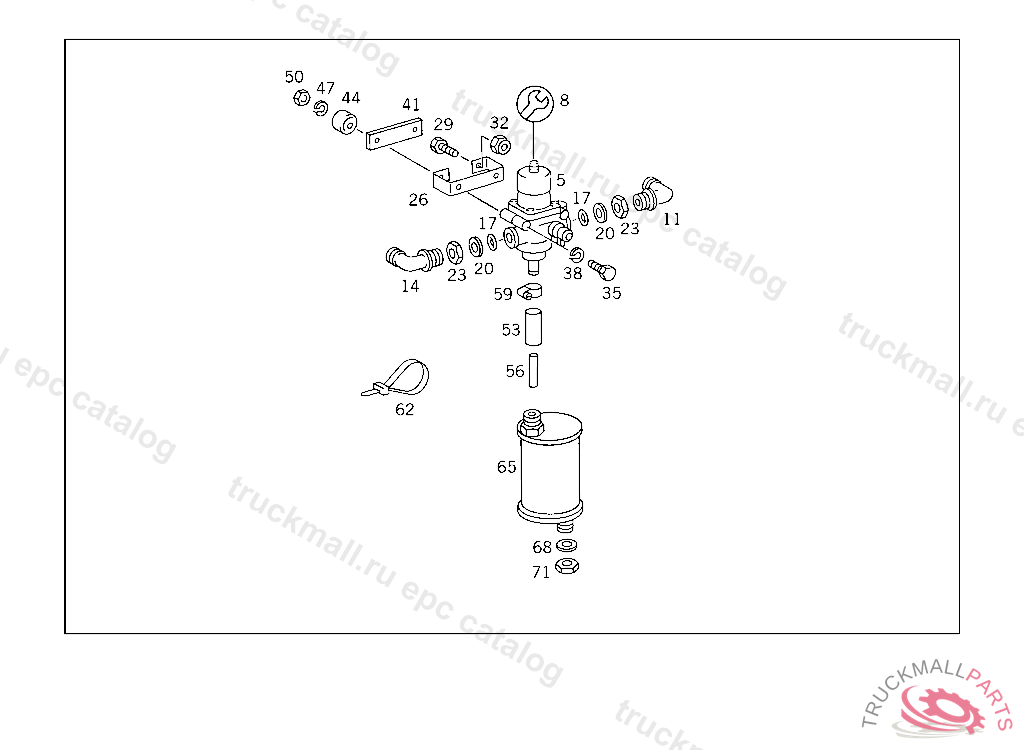

Поз.
Артикул
Описание
5
PRESSURE REGULATOR , Replaced By: A0024318306
5
PRESSURE REGULATOR , Replaced By: A0024314906
8
REPAIR KITTO 001 431 12 06, KNORR 3200
8
REPAIR KIT , Replaced By: A0004301107
11
ELBOW FITTING AIR RESERVOIR
14
FITTING , Replaced By: A0009907771
14
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
17
O-RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
23
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
35
SCREW PRESSURE REGULATOR TO RUBBER BUFFER M 8X70
38
LOCK WASHER RAIL TO BATTERY SUPPORT
41
SHIM PRESSURE REGULATOR TO RUBBER BUFFER
44
RUBBER BUFFER AT PRESSURE REGULATOR
47
LOCK WASHER RAIL TO BATTERY SUPPORT
50
NUT , Replaced By: N304032008006
53
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
59
CLAMP HOSE TO PRESSURE REGULATOR
65
MUFFLER
68
WASHER
71
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
