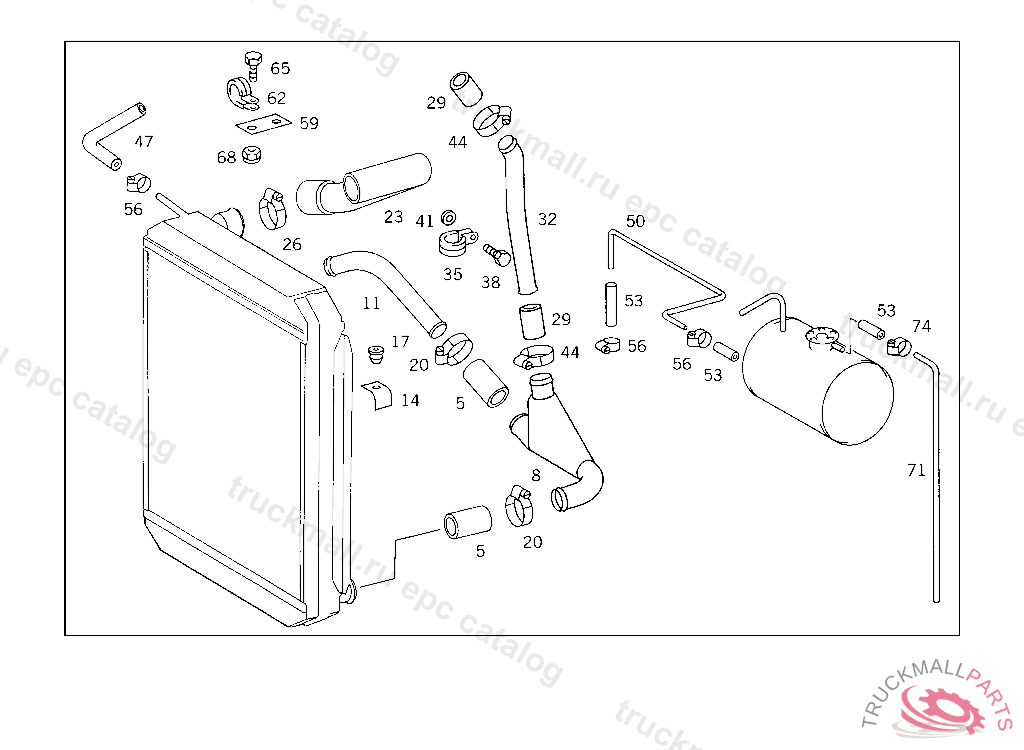

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
5
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
8
SEPARATOR
11
LINE FROM BUBBLE SEPARATOR TO WATER PUMP
11
COOLING WATER PIPE , Replaced By: A3645007472
14
BRACKET
17
RUBBER BUFFER
20
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
20
CLAMP HOSE FASTENING 50-70X13 MM
20
CLAMP , Replaced By: N000000000672
23
HOSE FROM THERMOSTAT TO RADIATOR
26
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
26
CLAMP. LOOM TIE (DRY FILTER)
29
HOSE THERMOSTAT,HEATING CONNECTION 38 X 50 X 430
32
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO EXPANSION TANK
35
CLAMP LINE MOUNTING
35
CLAMP , Replaced By: A3829950701
38
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
41
WASHER PLUG SOCKET TO BRACKET
44
CLAMP
44
CLAMP , Replaced By: N000000000671
44
LOOM TIE HOSE TO FILLER NECK
44
CLAMP , Replaced By: A0019972590
47
HOSE FROM EXPANSION TANK TO RADIATOR
47
BREATHER PIPE , Replaced By: N900271012081
50
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
53
HOSE ENGINE BREATHING
56
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
56
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
56
CLAMP HOSE TO FITTING AND TO OIL TANK
56
LOOM TIE. CLAMP HOSE TO HEATING PIPE
71
HOSE , Replaced By: A0109975982
74
CLAMPTO 005 420 99 18
74
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
