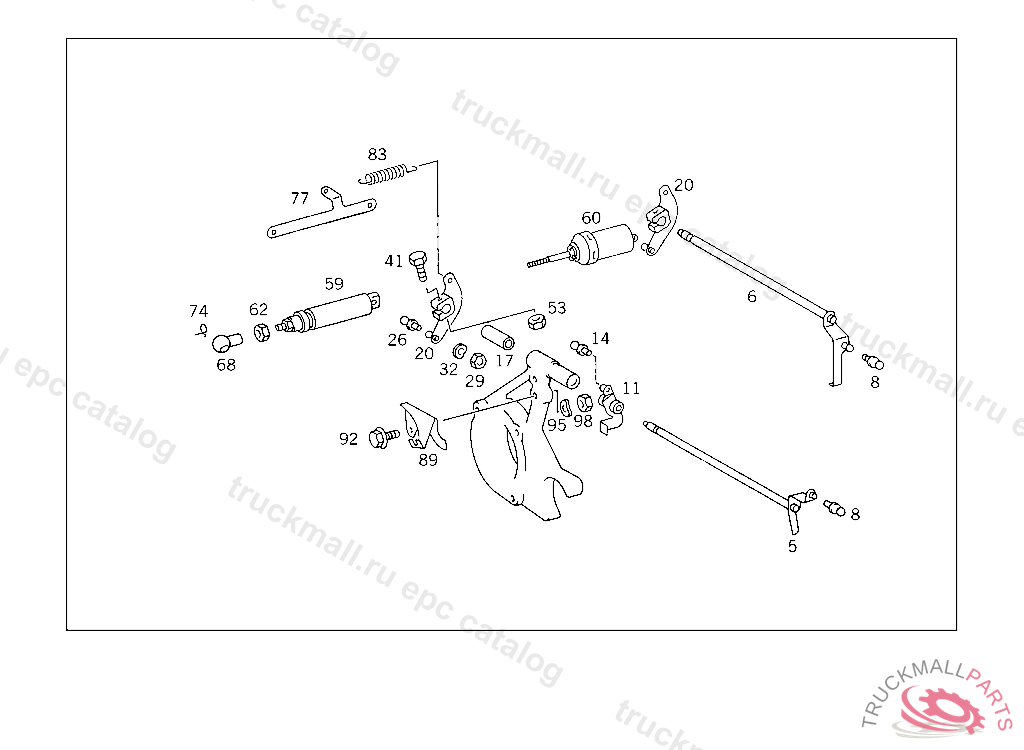

Поз.
Артикул
Описание
6
SHAFT (CONTROL SHAFT)
6
SHAFT , Replaced By: A3640701423
8
BALL PIVOT
17
SPACER TUBE VIBRATION ABSORBER TO BRACKET
17
SPACER TUBE EXHAUST PIPE TO BRACKET
17
SPACER TUBE , Replaced By: A4070720353
20
LEVER (DRAG LINK),CONTROL SHAFT
26
BALL PIVOT INJECTION PUMP
29
NUT BALL PIVOT TO LEVER
32
SPRING WASHER LICENSE PLATE TO BRACKET
41
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
41
SCREW , Replaced By: N000000001479
53
NUT , Replaced By: N913023006001
53
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
60
CYLINDER (OPERATING CYLINDER)
62
NUT BALL PIVOT TO LEVER
68
BALL SOCKET TO BE EXCHANGED FOR 000 991 24 22
68
BALL SOCKET PULL ROD TO LEVER
74
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
77
BRACKET
83
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
