Поз.
Артикул
Описание
5

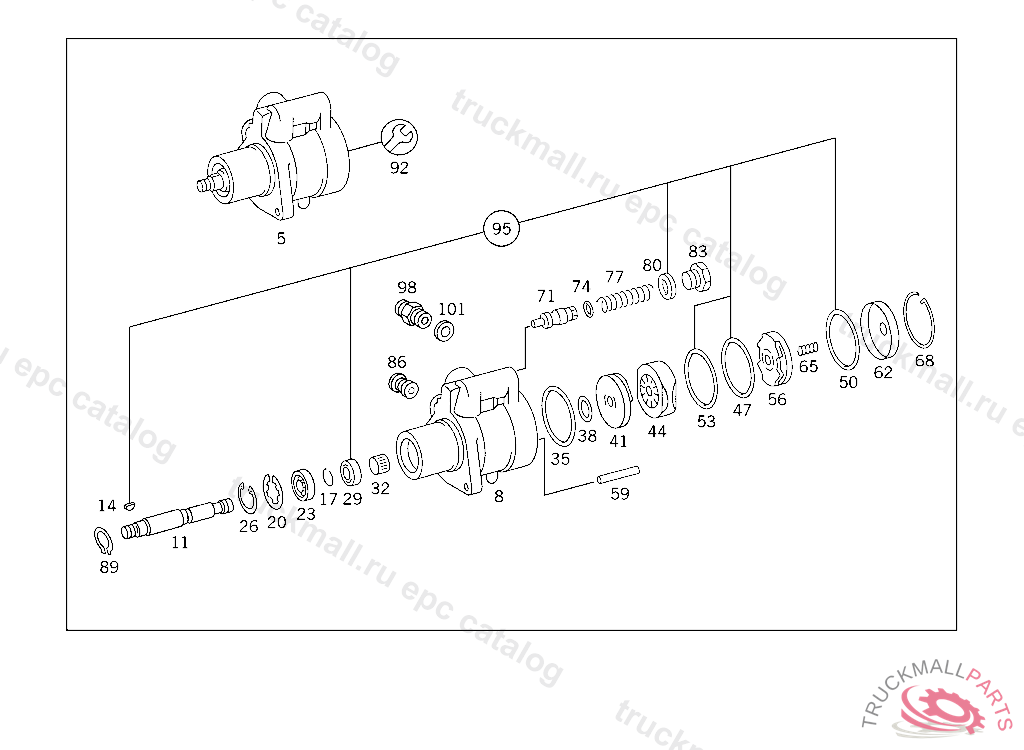

HYDRAULIC PUMP
8
HOUSING
11
DRIVE SHAFT
14
KEY , Replaced By: A0009912568
20
LOCK RING
23
BALL BEARING
26
SNAP RING
29
SEAL RING
32
NEEDLE BEARING
35
SEAL RINGTO 000 460 26 80
38
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
41
COVER
44
SET OF ROTORS
47
SEAL RINGTO 000 460 23 80
50
SEAL RING
56
COVER
59
DOWEL PINTO 001 466 77 01
62
COVERTO 000 460 23 80
62
COVER , Replaced By: A0004666505
65
SPRINGTO 000 460 23 80
68
SNAP RINGTO 000 460 23 80
71
PISTON
77
SPRING
80
SEAL RING LINE CONNECTION
83
SCREW PLUGTO 000 460 23 80
86
CARTRIDGE , Replaced By: A0004663584
86
CARTRIDGE
92
REPAIR KIT
98
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
101
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
