Поз.
Артикул
Описание

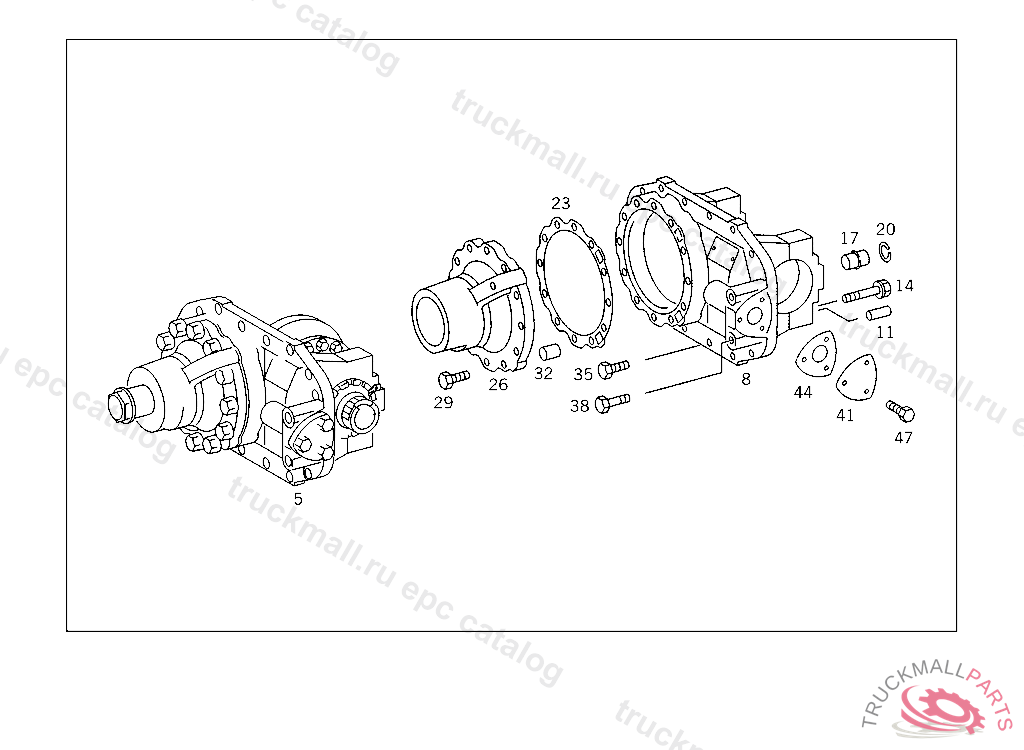

5
AXLE HOUSING. DIFFERENTIAL GEAR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
AXLE HOUSING WITH BEARING CAP
8
AXLE HOUSING , Replaced By: A9423500603
8
AXLE HOUSING WITH BEARING CAP
8
AXLE HOUSING , Replaced By: A3953504620
11
CYLINDRICAL PIN , Replaced By: N000007008101
11
CYLINDRICAL PIN
14
SCREW BEARING COVER TO AXLE HOUSING
17
PIN AXLE HOUSING
20
SNAP RING
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.00 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.35 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.20 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.15 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.10 MM
26
HOUSING PINION HOUSING
26
HOUSING , Replaced By: A3463530807, +001N000906020003
29
SCREW , Replaced By: A9429901304
29
SCREW APPARATUS SUPPORT TO FRAME
32
SEAL RING PINION HOUSING TO AXLE HOUSING
35
SCREW BRACKET TO BRACKET
35
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
38
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
38
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
41
COVER
44
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
47
SCREW PIPE CLAMP
47
SCREW , Replaced By: N304017008021
999
DIFFERENTIAL PINION
999
SIDE GEAR LEFT AND RIGHT,809388
