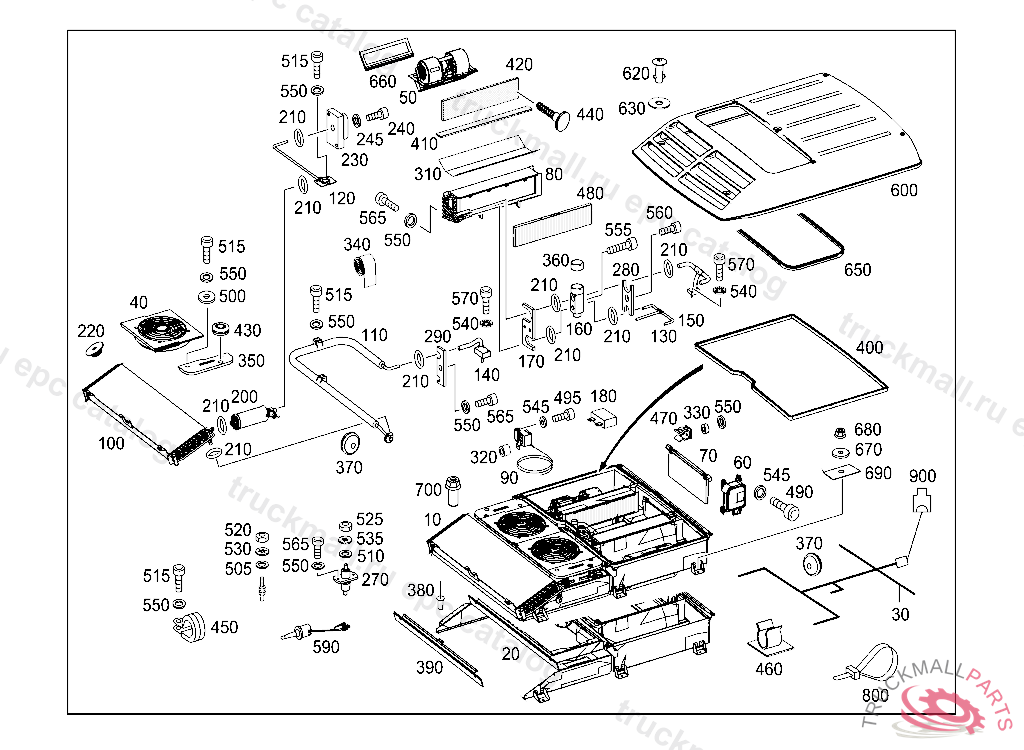

Поз.
Артикул
Описание
10
COOLING SYSTEM ON ROOF
20
HOUSING AC HOUSING AIR CONDITIONER CASE
30
ELECTRICAL WIRING HARNESS
40
FAN
50
BLOWER
60
SERVO-D.C. W.GEARBOX
70
RECIRCULATED AIR FLAP
80
EVAPORATOR LEFT
80
EVAPORATOR RIGHT
90
THERMOSTAT
100
REFRIGERANT CONDENSER
110
PIPELINE AT CONDENSER
120
PIPELINE AT DEHYDRATOR
130
PIPELINE FROM EXPANSION VALVE SEPARATION POINT
140
PIPELINE SEPARATION POINT TO CONDENSER
150
PIPELINE EXPANSION VALVE CONNECTION
160
EXPANSION VALVE
170
RETAINING PLATE EXPANSION VALVE
180
FUSE LINK20 A
180
FUSE LINK CONTROL MODULE SAM/SRB FRONT 20 A
200
REFRIGERANT DRIER
210
RING. SEAL RINGNW 16
210
SEAL RING5/8 "
210
SEAL RING
210
SEAL RING
220
BLIND RIVET CONDENSER MOUNTING
230
CONNECTING FLANGE
240
SCREW W HEXAGON SOCKET FLANGE M5X16
245
LOCKING DISK FLANGE M5 BN208010
270
CONNECTING FLANGE
280
RETAINING PLATE HOSES
290
RETAINING PLATE
310
WATER COLLECTOR
320
SPACER SLEEVE. SLEEVE
330
BUSH WITHOUT CHAMFER
340
INSULATION , Replaced By: A9018311396
350
BRACKET FAN
360
PROTECTIVE CAP
370
FEED-THROUGH GROMMET
380
STRUT AT HOUSING
390
BLIND RIVET CONDENSER MOUNTING
400
SEALING FRAME. SEALING SECTION
410
SEALING FRAME TO EVAPORATOR
420
FILTER INSERT
430
GROMMET, OPEN, SMOOTH. GROMMET
440
PLUG
450
MOUNTING CLAMP W SHACKLE PIPE LINE
460
LINE FASTENER CABLE HARNESS
470
MOUNTING CLIP. RETAINING CLIP
480
FILTER INSERT
490
SCREW W HEXAGON SOCKET ENGINE FIXING M4X16
495
SCREW W HEXAGON SOCKET THERMOSTAT FASTENING M4X20
500
PLANE PARALLEL WASHERB 6,4
505
PLANE PARALLEL WASHER PIN B 8,4
510
PLANE PARALLEL WASHER CONNECTOR B 10,5
515
HEXAGON HEAD BOLT
520
HEXAGON NUT PIN M8
525
HEXAGON NUT CONNECTOR M10
530
LOCKING DISK. LOCK
535
LOCK WASHER. LOCK
540
SPRING WASHER LINE ATTACHMENT M6
545
LOCKING DISK FASTENING, ENGINE AND THERMOSTAT M4
550
LOCKING DISKM6
555
SCREW W HEXAGON SOCKET VALVE MOUNTING M5X40
560
SCREW W HEXAGON SOCKETM6X16
565
SCREW W HEXAGON SOCKETM6X20
570
SCREW W HEXAGON SOCKET LINE ATTACHMENT M6X30
590
TEMPERATURE SENSOR
600
COVER COOLING SYSTEM
620
LOCKING PIN. PIN
620
HASP LOCK , E 07388120121201
630
TRIM RING PIN, 20130430
630
SEALING WASHER. SEAL WASHER RUBBER 8,2X30,0X1,5MM
650
SEALING AIR DUCT REAR COOLING SYSTEM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. E 09099920131206, Replaced By: A9068308400
660
SEALING AIR DUCT AIR DUCT
670
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
680
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
690
FLANGE GASKET
700
NUT
800
CABLE STRAP
900
PIN BUSHING HOUSING AUTSIDE REARVIEW MIRROR ADJUSTMENT SWITCH 12 PIN, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
