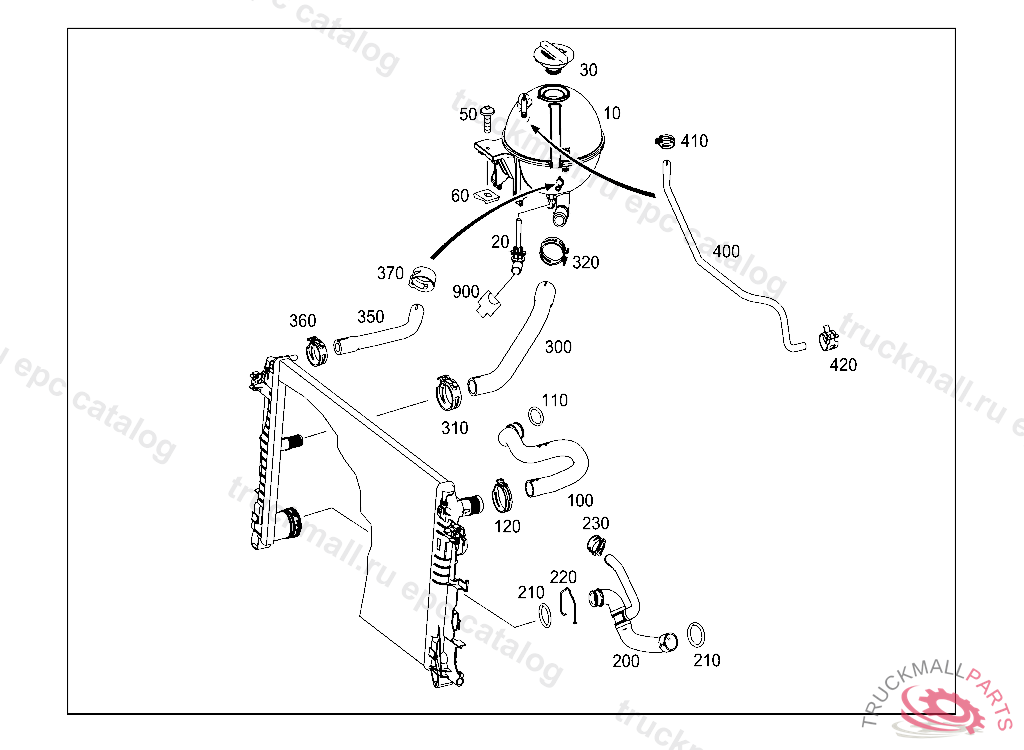

Поз.
Артикул
Описание
10
DASHPOT
20
SWITCH,AUTOMATIC COOLING WATER LEVEL INDICATOR
30
RADIATOR CAP
50
HEXALOBULAR BOLT BUMPER COVERING M6X20
60
LOCK NUT. SPRING NUT MOUNTING PARTS
100
COOLANT HOSE TOP, AT RADIATOR
110
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
120
CLAMP HOSE TO THERMOSTAT
200
COOLANT HOSE TO RADIATOR BOTTOM
210
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
220
STOP SPRING TO RIGHT RADIATOR
230
CLAMP COOLANT HOSE TO COOLANT LINE 23-26 MM
300
COOLANT FILLING HOSE
310
HOSE CLAMP HOSE ATTACHMENT 27 MM
320
SPRING HOSE CLAMP HOSE FASTENING,230301
350
COOLANT HOSE BREATHING
360
SPRING HOSE CLAMP HOSE TO COOLING PIPE, N 50802320120118 E 06339420120403
370
SPRING HOSE CLAMP HOSE TO COOLING PIPE, N 50802320120118 E 06339420120403
400
COOLANT HOSE ENGINE BREATHING
410
SPRING HOSE CLAMP PURGE LINE TO INTAKE MANIFOLD
420
CLAMP14 MM
900
SOCKET HOUSING. PIN BUSHING HOUSING PRESSURE CONVERTER THROTTLE VALVE
